13.5″ B&C Woofer NA100
A four inch voice coil gives the 14NA100 mid-bass higher power handling and longer excursion capabilities, while an inside slug neodymium magnet provides high motor strength and efficiency. This all around performer is perfect for maximum output two way applications, especially thanks to its aluminum demodulating ring which reduces distortion and flattens impedance into the mid frequencies.
Key Features
- 1600 W continuous program power capacity
- 100 mm (4 in) aluminum voice coil
- 45 – 2000 Hz response
- 99 dB sensitivity
- Aluminium demodulating ring allows a very low distortion figure
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Nominal Diameter: 359 mm (14 in)
Minimum Impedance: 6.2 Ω
Continuous Power Handling: 1600 W
Frequency Range: 45 Hz – 2000 Hz
Winding Material: Aluminium
Winding Depth: 23 mm (0.91 in)
Flux Density: 1.15 T
Nominal Impedance: 8 Ω
Nominal Power Handling: 800 W
Sensitivity: 99 dB
Voice Coil Diameter: 100 mm (4 in)
Former Material: Glass Fibre
Magnetic Gap Depth: 11 mm (0.43 in)
Woofer Cone Treatment: WP Waterproof Front Side
Parameters
Fs: 43 Hz
Qes: 0.24
Qts: 0.23
Sd: 707 cm² (109.59 in²)
Xmax: 8.8 mm
Mms: 96.5 g
Le: 0.74 mH
Re: 5.1 Ω
Qms: 5.6
Vas: 99.5 dm³ (3.51 ft³)
η₀: 3.1 %
Xvar: 8.5 mm
Bl: 23.5 Tm
EBP: 179 Hz
Design
Surround Shape: Triple Roll
Magnet Material: Neodymium Inside Slug
Pole Design: T-Pole
Recommended Enclosure: 60 dm³ (2.12 ft³)
Cone Shape: Radial
Spider: Double Silicone
Woofer Cone Treatment: WP Waterproof Front Side
Recommended Tuning: 50 Hz

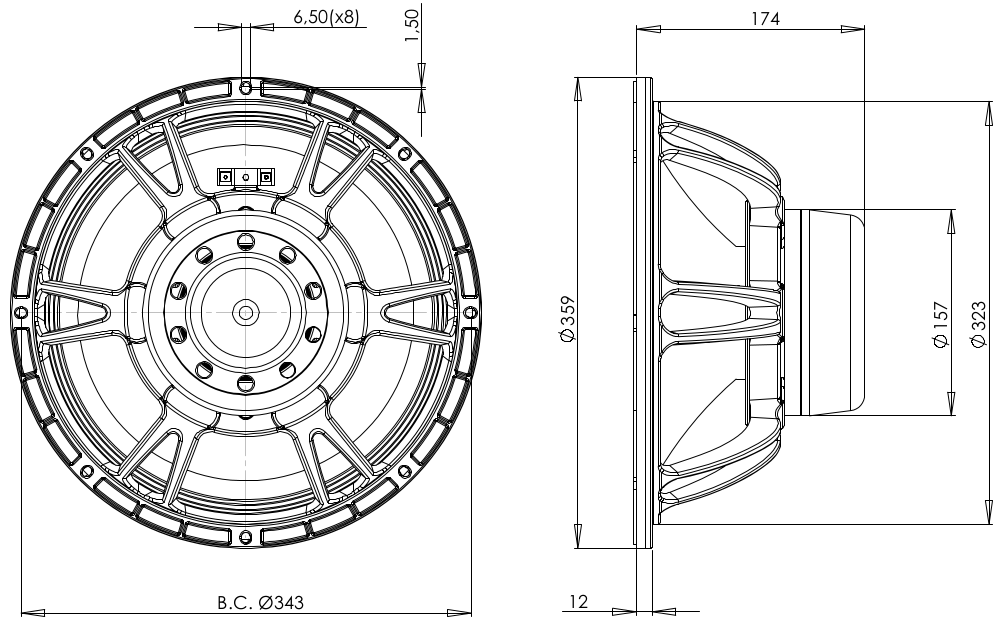

Mounting and Shipping Info
Overall Diameter: 359 mm (14.13 in)
Baffle Cutout Diameter: 324 mm (12.76 in)
Flange and Gasket Thickness: 12 mm (0.47 in)
Net Weight: 8.3 kg (18.3 lb)
Shipping Weight: 9.6 kg (21.16 lb)
Bolt Circle Diameter: 343 mm (13.5 in)
Depth: 176 mm (6.93 in)
Air Volume Occupied by Driver: 3.5 dm³ (0.12 ft³)
Shipping Units: 1 pcs
Shipping Box: 425x425x224 mm (16.73×16.73×8.82 in)
Service Kit
Recone Kit: RCK14NA1008
Cone
Gasket
Centering Shims
