B&C CROSSOVER FB15CX40

Specifications

Nominal Impedance: 8 Ω

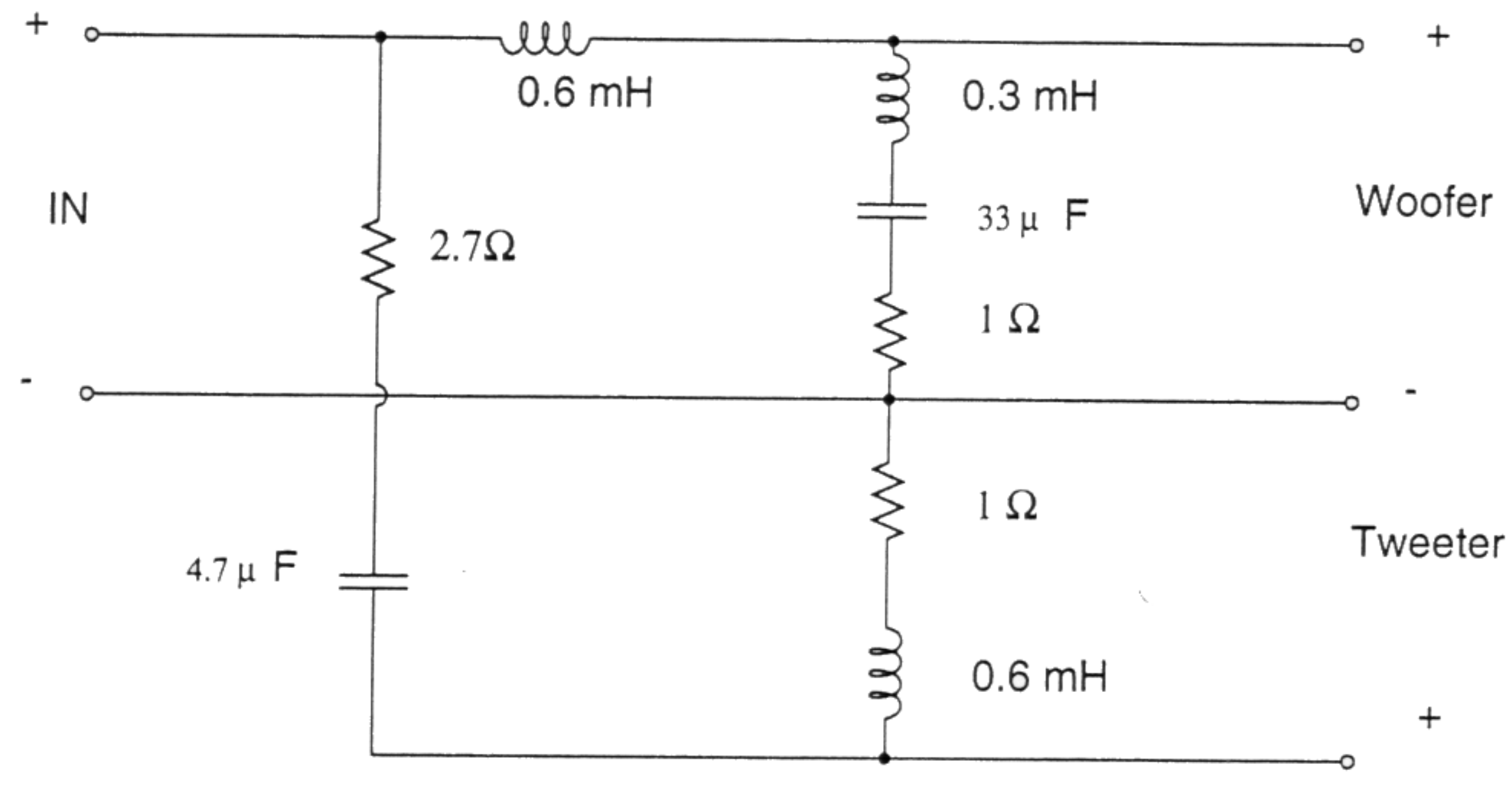

Filter Type: Two Way
Overall Dimensions: 143×108 mm (5.63×4.25 in)
Crossover Frequency: 1.4 kHz
Slope: 6 – 12 dB/oct

Mounting and Shipping Info

Other details: 6 mm diameter holes on the PCB at 131 mm x 96 mm
Shipping Units: 1 pcs
Shipping Box: 135x150x40 mm (5.31×5.91×1.57 in)
Net Weight: 0.62 kg (1.37 lb)
Shipping Weight: 0.66 kg (1.46 lb)

Specification PDF
