8″ B&C Woofer NDL51 16Ω|4Ω|8Ω
Key Features
- 50 mm (2 in) copper voice coil
- 70 – 3000 Hz response
- 94 dB sensitivity
- Neodymium magnet allows a very light yet powerful motor assembly
- Shorting copper cap for extended HF response
- 400 W continuous program power capacity
- Ventilated voice coil gap for reduced power compression
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
| SPECIFICATIONS | |
| Nominal Basket Diameter | 8″ / 200mm |
| Impedance | 8 ohms |
| RMS Power Rating | 200 Watts |
| Program Power | 400 Watts |

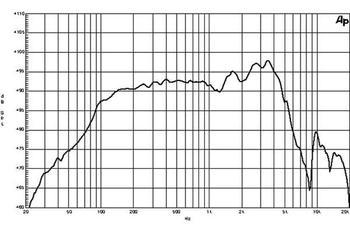

| Frequency Response | 65Hz – 3.0kHz |
| Sensitivity (1W/1m) | 94dB |
| Voice Coil Diameter | 2.0” / 51mm |
| Winding Material | Copper |
| Former Material | Kapton |
| Winding Depth | .65″ / 16.5mm |
| Magnetic Gap Depth | .3125″ / 8mm |
| Flux Density | 1.05T |
| MOUNTING INFORMATION | |
| Overall Diameter | 8.8″ / 225mm |
| Bolt Circle Diameter | 8.3″ / 210mm |
| Baffle Cutout Diameter | 7.4″ / 187mm |
| Depth | 3.5″ / 90mm |
| Flange & Gasket Thickness | .4″ / 11mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 4.0 lbs./ 1.8 kg. |
| THIELE-SMALL PARAMETERS | |
| Resonant Frequency (fs) | 66 Hz |
| Impedance (Re) | 5.4 ohms |
| Electrical Factor(Qes) | .41 |
| Mechanical Q (Qms) | 3.6 |
| Total Q (Qts) | .37 |
| Compliance Equiv. Vol. (Vas) | 14 Liters/.49cu. ft. |
| Voice Coil Overhang (Xmax) | 7.0mm |
| Reference Efficiency | 1% |
| BL Factor | 12.4 T-M |
| Coil Inductance (Le) | 0.5mH |
