Aprašymas
| SPECIFICATIONS | |
| Nominal Basket Diameter | 12” / 320mm |

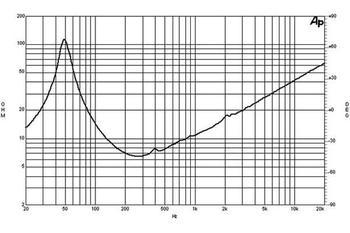

| Impedance | 8 ohms |
| AES Power Rating | 350 Watts |
| Program Power | 700 Watts |

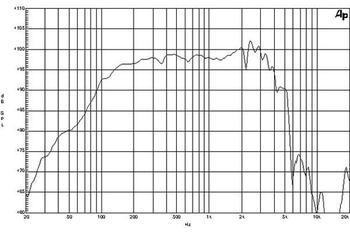

| Frequency Response | 50Hz – 2.0kHz |
| Sensitivity (1W/1m) | 98.5dB |
| Voice Coil Diameter | 3” / 76mm |
| Winding Material | Aluminum |
| Former Material | Glass Fibre |
| Winding Depth | .625″ / 16mm |
| Magnetic Gap Depth | .4″ / 10.5mm |
| Flux Density | 1.05T |
| MOUNTING INFORMATION | |
| Overall Diameter | 12.4″ / 316mm |
| Bolt Circle Diameter | 11.6″ / 296mm |
| Baffle Cutout Diameter | 11.1″ / 282mm |
| Depth | 5.3” / 134mm |
| Flange & Gasket Thickness | .625″ / 16mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 16.3 lbs./ 7.4 kg. |
| THIELE-SMALL PARAMETERS | |
| Resonant Frequency (fs) | 50 Hz |
| Impedance (Re) | 5.3 ohms |
| Electrical Factor(Qes) | .24 |
| Mechanical Q (Qms) | 5.2 |
| Total Q (Qts) | .23 |
| Compliance Equiv. Vol. (Vas) | 75 Liters/2.6cu. ft. |
| Voice Coil Overhang (Xmax) | 5.0mm |
| Reference Efficiency | 3.8% |
| BL Factor | 18.6 T-M |
| Coil Inductance (Le) | 1.2mH |
