B&C 10NW64
€0.00
- 600 W continuous program power capacity
- 64 mm (2.5 in) copper voice coil

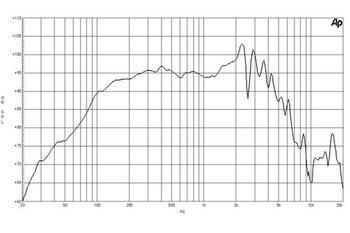

- 50 – 2500 Hz response
- 96 dB sensitivity
- Neodymium magnet allows a very light yet powerful motor assembly
- Shorting copper cap for extended HF response
- Ventilated voice coil gap for reduced power
- Aprašymas
- Atsiliepimai (0)
Aprašymas
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
10” / 250mm |
|
Impedance |
8 or 16 ohms |
|
RMS Power Rating |
300 Watts |
| Program Power | 600 Watts |
|
Frequency Response |
50Hz – 2.5kHz |
|
Sensitivity (1W/1m) |
96dB |
|
Voice Coil Diameter |
2.5” / 64mm |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | .62″ / 16mm |
| Magnetic Gap Depth | .31″ / 8mm |
| Flux Density | 1.25T |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 10.2″ / 261mm |
| Bolt Circle Diameter | 9.6″ / 245mm |
| Baffle Cutout Diameter | 8.8″ / 230mm |
| Depth | 4.4″ / 113mm |
| Flange & Gasket Thickness | .5″ / 13mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 6.4 lbs./ 2.9 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
50 Hz |
| Impedance (Re) | 5.2 ohms |
| Electrical Factor(Qes) | .27 |
| Mechanical Q (Qms) | 4.5 |
| Total Q (Qts) | .26 |
| Compliance Equiv. Vol. (Vas) | 27.5 Liters/.95cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.032m2 |
| Voice Coil Overhang (Xmax) | 8.0mm |
| Reference Efficiency | 1.3% |
| Diaphragm Mass (Mms) | 47g |
| BL Factor | 17.5 T-M |
| Coil Inductance (Le) | 1.25mH |
