B&C 10HPL64
€0.00
- 400 W continuous program power capacity
- 64 mm (2.5 in) aluminium voice coil
- 60 – 4000 Hz response
- 98.5 dB sensitivity
- Neodymium magnet allows a very light yet powerful motor assembly
- Aprašymas
- Papildoma informacija
- Atsiliepimai (0)
Aprašymas
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
10” / 250mm |
|

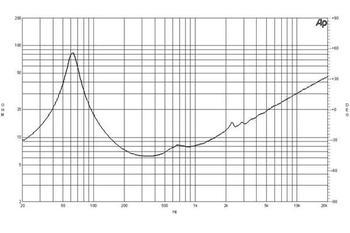

Impedance |
8 ohms |
|
RMS Power Rating |
200 Watts |
| Program Power | 400 Watts |
|

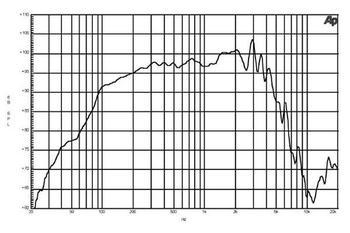

Frequency Response |
60Hz – 4.0kHz |
|
Sensitivity (1W/1m) |
98.5dB |
|
Voice Coil Diameter |
2.5” / 64mm |
| Winding Material | Aluminum |
| Former Material | Glass Fibre |
| Winding Depth | .47″ / 12mm |
| Magnetic Gap Depth | .3125″ / 8mm |
| Flux Density | 1.25T |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 10.3″ / 261mm |
| Bolt Circle Diameter | 9.6″ / 245mm |
| Baffle Cutout Diameter | 9″ / 230mm |
| Depth | 4.9″ / 124mm |
| Flange & Gasket Thickness | .5″ / 12.5mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 4.4 lbs./ 2 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
61 Hz |
| Impedance (Re) | 5.4 ohms |
| Electrical Factor(Qes) | .33 |
| Mechanical Q (Qms) | 4.5 |
| Total Q (Qts) | .31 |
| Compliance Equiv. Vol. (Vas) | 31.15 Liters/1.1cu. ft. |
| Voice Coil Overhang (Xmax) | 4.0mm |
| Reference Efficiency | 2.5% |
| BL Factor | 15 T-M |
| Coil Inductance (Le) | 0.5mH |
