8″ B&C Woofer FMB51 8Ω|16Ω
The FMB series mid-bass woofers from B&C Speakers offer acoustic designers a new range of high efficiency, wide bandwidth alternatives that are not currently available in the B&C range. These full-featured transducers incorporate lower cost ferrite motors, inside/outside wound copper clad aluminum wire voice coils, weatherproof impregnated paper cones, and a symmetrical inductance profile. The FMB Series is especially well suited for two-way loudspeaker enclosures.
Key Features
- 500 W continuous program power capacity
- 51 mm (2 in) aluminium voice coil
- 67 – 4500 Hz response
- 96.5 dB sensitivity
- Ventilated voice coil gap for reduced power compression
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
8 Ω | 16 Ω
Specifications
Nominal Diameter: 200 mm (8 in)
Minimum Impedance: 5.5 Ω
Continuous Power Handling: 500 W
Frequency Range: 67 Hz – 4500 Hz
Winding Material: Aluminium
Winding Depth: 15 mm (0.59 in)
Flux Density: 1.19 T
Nominal Impedance: 8 Ω
Nominal Power Handling: 250 W
Sensitivity: 96.5 dB
Voice Coil Diameter: 51 mm (2 in)
Former Material: Glass Fibre
Magnetic Gap Depth: 8 mm (0.31 in)
Woofer Cone Treatment: Waterproof Impregnated Cone
Parameters
Fs: 67 Hz
Qes: 0.31
Qts: 0.28
Sd: 227 cm² (35.19 in²)
Xmax: 5.5 mm
Mms: 20.2 g
Le: 0.48 mH
Re: 4.7 Ω
Qms: 3.07
Vas: 20.7 dm³ (0.73 ft³)
η₀: 1.91%
Xvar: 5 mm
Bl: 11.3 Tm
EBP: 216 Hz
Design
Surround Shape: Triple Roll
Magnet Material: Ferrite
Pole Design: T-Pole

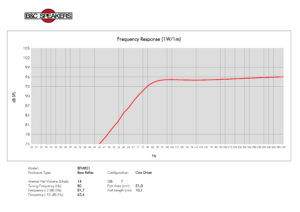

Recommended Enclosure: 14 dm³ (0.49 ft³)
Cone Shape: Curvilinear
Spider: Single
Woofer Cone Treatment: Waterproof Impregnated Cone
Recommended Tuning: 80 Hz

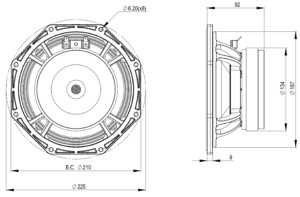

Mounting and Shipping Info
Overall Diameter: 225 mm (8.86 in)
Baffle Cutout Diameter: 187 mm (7.36 in)
Flange and Gasket Thickness: 9 mm (0.35 in)
Net Weight: 3.4 kg (7.5 lb)
Shipping Weight: 3.85 kg (8.49 lb)
Bolt Circle Diameter: 210 mm (8.27 in)
Depth: 92 mm (3.62 in)
Air Volume Occupied by Driver: 1.2 dm³ (0.04 ft³)
Shipping Units: 1 pcs
Shipping Box: 255x255x150 mm (10.04×10.04×5.91 in)
