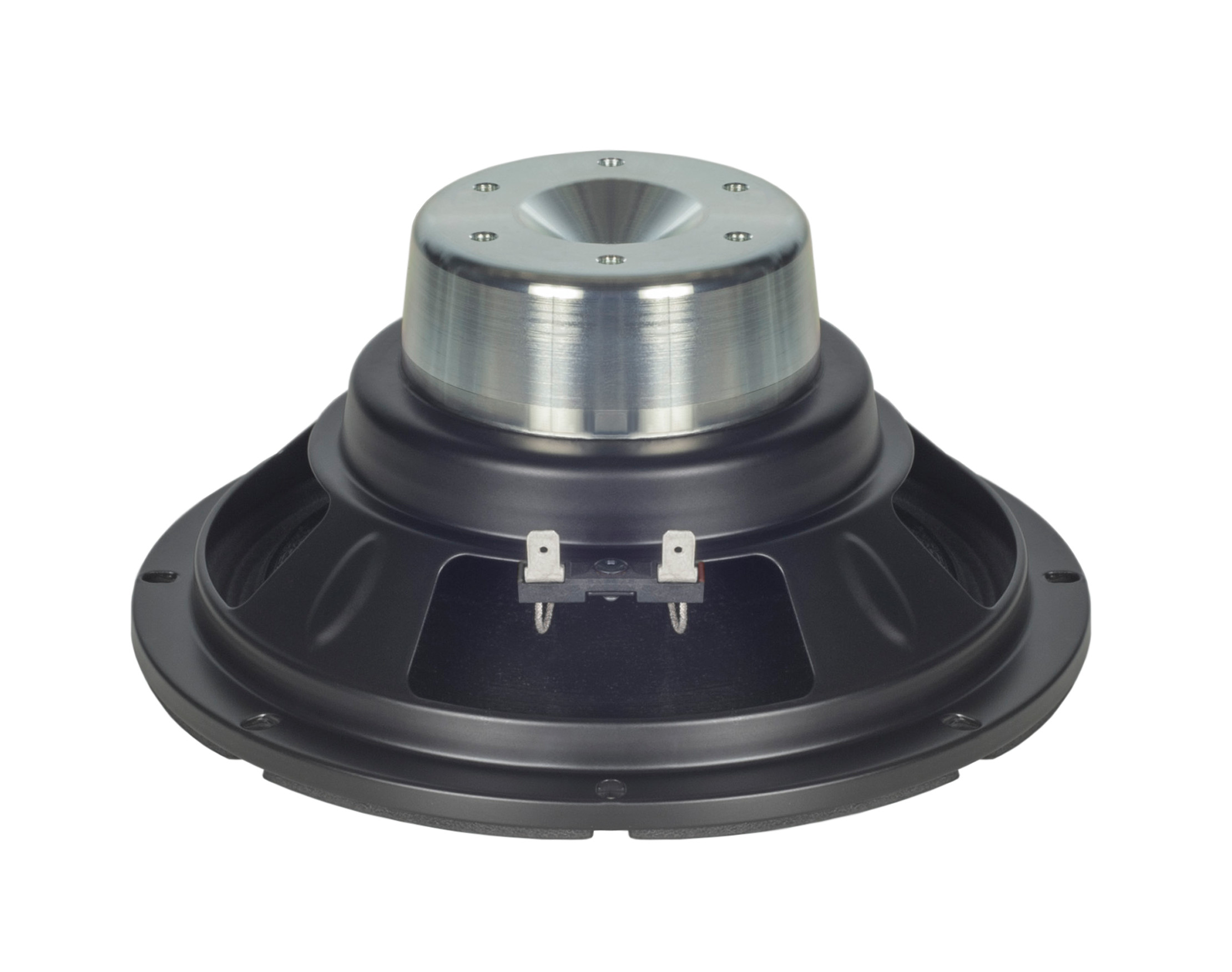

8″ B&C Woofer CLA64
Key Features
- 500 W continuous program power capacity
- 64 mm (2.5 in) copper voice coil
- 70 – 4000 Hz response
- 96 dB sensitivity
- Neodymium magnet allows a very light yet powerful motor assembly
- Ventilated voice coil gap for reduced power compression
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Nominal Diameter: 200 mm (8 in)
Minimum Impedance: 6.5 Ω
Continuous Power Handling: 500 W
Frequency Range: 70 Hz – 4000 Hz
Winding Material: Aluminium
Winding Depth: 14.5 mm (0.57 in)
Flux Density: 1.2 T
Nominal Impedance: 8 Ω
Nominal Power Handling: 250 W
Sensitivity: 96 dB
Voice Coil Diameter: 64 mm (2.5 in)
Former Material: SV Kraft
Magnetic Gap Depth: 8 mm (0.31 in)
Woofer Cone Treatment: WP Waterproof Front Side
Parameters
Fs: 71 Hz
Qes: 0.25
Qts: 0.24
Sd: 220 cm² (34.1 in²)
Xmax: 5.3 mm
Mms: 27 g
Le: 1 mH
Re: 5.6 Ω
Qms: 7.3
Vas: 12.5 dm³ (0.44 ft³)
η₀: 1.8%
Xvar: 6.6 mm
Bl: 16.4 Tm
EBP: 284 Hz
Design
Surround Shape: Double Roll
Magnet Material: Neodymium Inside Slug
Pole Design: Straight Pole
Recommended Loading: Vented Box
Cone Shape: Curvilinear
Spider: Single
Woofer Cone Treatment: WP Waterproof Front Side
Mounting and Shipping Info
Overall Diameter: 209 mm (8.23 in)
Baffle Cutout Diameter: 185 mm (7.3 in)
Flange and Gasket Thickness: 9 mm (0.35 in)
Net Weight: 1.7 kg (3.75 lb)
Bolt Circle Diameter: 198 mm (7.8 in)
Depth: 95 mm (3.74 in)
Air Volume Occupied by Driver: 1.1 dm³ (0.04 ft³)
