8″ B&C Woofer FG51
Key Features
- 500 W continuous program power capacity
- 51 mm (2 in) copper voice coil
- 50 – 4000 Hz response
- 93 dB sensitivity
- Shorting copper cap for extended HF response
- Ventilated voice coil gap for reduced power compression
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Nominal Diameter: 200 mm (8 in)
Minimum Impedance: 6.5 Ω
Continuous Power Handling: 500 W
Frequency Range: 50 Hz – 4000 Hz
Winding Material: Copper
Winding Depth: 17 mm (0.65 in)
Flux Density: 1.15 T
Nominal Impedance: 8 Ω
Nominal Power Handling: 250 W
Sensitivity: 93 dB
Voice Coil Diameter: 51 mm (2 in)
Former Material: Glass Fibre
Magnetic Gap Depth: 8 mm (0.31 in)
Woofer Cone Treatment: WP Waterproof Front Side
Parameters
Fs: 49 Hz
Qes: 0.34
Qts: 0.32
Sd: 220 cm² (34.1 in²)
Xmax: 6.5 mm
Mms: 35 g
Le: 0.5 mH
Re: 5.1 Ω
Qms: 9
Vas: 20 dm³ (0.71 ft³)
η₀: 0.7%
Xvar: 8 mm
Bl: 12.9 Tm
EBP: 144 Hz
Design
Surround Shape: Roll
Magnet Material: Ferrite
Pole Design: T-Pole
Recommended Enclosure: 17 dm³ (0.6 ft³)
Cone Shape: Exponential
Spider: Single
Woofer Cone Treatment: WP Waterproof Front Side
Recommended Tuning: 52 Hz

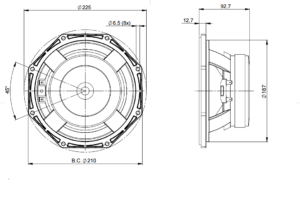

Mounting and Shipping Info
Overall Diameter: 225 mm (8.8 in)
Baffle Cutout Diameter: 187 mm (7.4 in)
Flange and Gasket Thickness: 11 mm (0.43 in)
Net Weight: 3.4 kg (7.5 lb)
Shipping Weight: 3.85 kg (8.49 lb)
Bolt Circle Diameter: 210 mm (8.3 in)
Depth: 93 mm (3.7 in)
Air Volume Occupied by Driver: 1.5 dm³ (0.05 ft³)
Shipping Units: 1 pcs
Shipping Box: 255x255x150 mm (10.04×10.04×5.91 in)
Service Kit
Recone Kit: RCK008FG518
Cone
Gasket
Centering Shims
