6″ B&C Midrange PEV13

Specifications

Nominal Diameter: 170 mm (6.5 in)
Minimum Impedance: 6 Ω
Continuous Power Handling: 240 W
Frequency Range: 150 Hz – 8000 Hz
Winding Material: Aluminium
Winding Depth: 7 mm (0.28 in)
Flux Density: 1.4 T
Nominal Impedance: 8 Ω
Nominal Power Handling: 120 W
Sensitivity: 99 dB
Voice Coil Diameter: 38 mm (1.5 in)
Former Material: Glass Fibre
Magnetic Gap Depth: 6 mm (0.24 in)
Woofer Cone Treatment: None

Parameters

Fs: 126 Hz
Qes: 0.39
Qts: 0.36
Sd: 132 cm² (20.46 in²)
Xmax: 2.5 mm
Mms: 6 g
Le: 0.6 mH
Re: 5.2 Ω
Qms: 4.6
Vas: 6 dm³ (0.21 ft³)
η₀: 3%
Xvar: 1.5 mm
Bl: 8.2 Tm
EBP: 323 Hz

Design

Surround Shape: Flat
Magnet Material: Ferrite
Pole Design: Straight Pole
Cone Shape: Exponential
Spider: Single
Woofer Cone Treatment: None

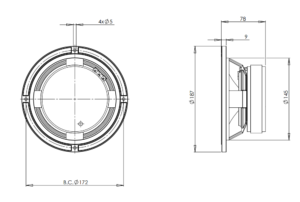

Mounting and Shipping Info

Overall Diameter: 187 mm (7.36 in)
Baffle Cutout Diameter: 145 mm (5.71 in)
Flange and Gasket Thickness: 11 mm (0.43 in)
Net Weight: 2.35 kg (5.18 lb)
Shipping Weight: 2.55 kg (5.62 lb)
Bolt Circle Diameter: 172 mm (6.77 in)
Depth: 78 mm (3.07 in)
Air Volume Occupied by Driver: 0.8 dm³ (0.03 ft³)
Shipping Units: 1 pcs
Shipping Box: 210x210x125 mm (8.27×8.27×4.92 in)

Service Kit

Recone Kit: RCK06PEV138
Cone
Gasket
Centering Shims
