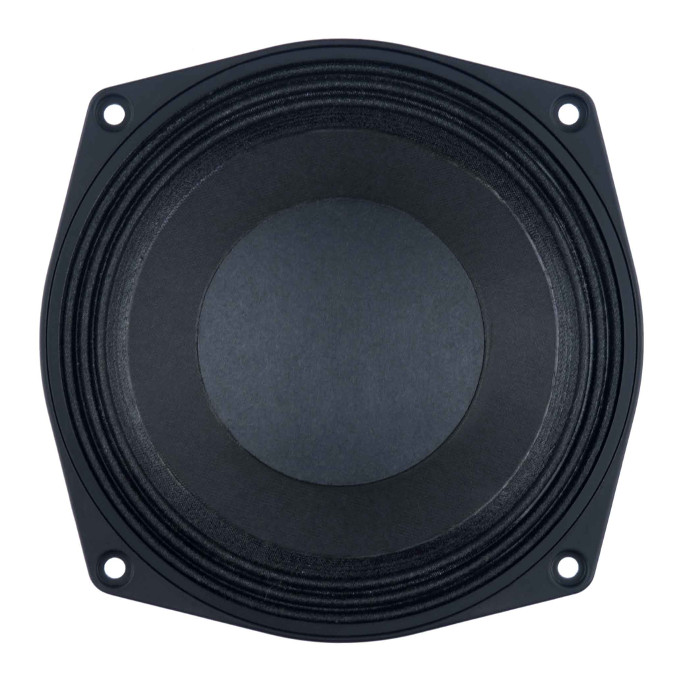

6″ B&C Midbass MBX44 8Ω|16Ω
The MBX series mid-bass woofers from B&C Speakers offer acoustic designers a new range of high efficiency, wide bandwidth alternatives that are not currently available in the B&C range. These full-featured transducers incorporate lightweight neodymium motors, inside/outside wound copper clad aluminum wire voice coils, weatherproof impregnated paper cones, and a symmetrical inductance profile. The MBX Series is especially well suited for two-way loudspeaker enclosures.
Key Features
- 400 W continuous program power capacity
- 44 mm (1.7 in) aluminium voice coil
- 115 – 5000 Hz response
- 98 dB sensitivity
- Neodymium magnet allows a very light yet powerful motor assembly
- Aluminium ring allows a very low distortion figure
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
8 Ω | 16 Ω
Specifications
Nominal Diameter: 170 mm (6.5 in)
Minimum Impedance: 6 Ω
Continuous Power Handling: 400 W
Frequency Range: 115 Hz – 5000 Hz
Winding Material: Aluminium
Winding Depth: 10 mm (0.37 in)
Flux Density: 1.55 T
Nominal Impedance: 8 Ω
Nominal Power Handling: 200 W
Sensitivity: 98 dB
Voice Coil Diameter: 44 mm (1.7 in)
Former Material: Glass Fibre
Magnetic Gap Depth: 6 mm (0.25 in)
Woofer Cone Treatment: Waterproof Impregnated Cone
Parameters
Fs: 113 Hz
Qes: 0.34
Qts: 0.31
Sd: 132 cm² (20.46 in²)
Xmax: 3.5 mm
Mms: 12 g
Le: 0.2 mH
Re: 5.4 Ω
Qms: 3.9
Vas: 4.1 dm³ (0.14 ft³)
η₀: 1.4%
Xvar: 3 mm
Bl: 11.7 Tm
EBP: 332 Hz
Design
Surround Shape: Triple Roll
Magnet Material: Neodymium Ring
Pole Design: T-Pole
Recommended Enclosure: 3 dm³ (0.11 ft³)
Cone Shape: Exponential
Spider: Single
Woofer Cone Treatment: Waterproof Impregnated Cone

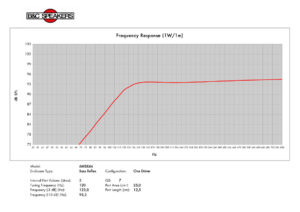

Recommended Tuning: 120 Hz
Mounting and Shipping Info
Overall Diameter: 187 mm (7.36 in)
Baffle Cutout Diameter: 145 mm (5.7 in)
Flange and Gasket Thickness: 11 mm (0.4 in)
Net Weight: 1.59 kg (3.51 lb)
Shipping Weight: 1.79 kg (3.95 lb)
Bolt Circle Diameter: 172 mm (6.7 in)
Depth: 87 mm (3.43 in)
Air Volume Occupied by Driver: 0.6 dm³ (0.02 ft³)
Shipping Units: 1 pcs
Shipping Box: 210x210x125 mm (8.27×8.27×4.92 in)
Service Kit
Recone Kit: RCK06MBX448
Cone, Gasket, Centering Shims
