6.5″ B&C CXN36
Unique to B&C, a complete lineup of high sensitivity and power handling 4”, 5″ and 6.5″ frame transducers. These high technology products are made with our famously critical quality control, allowing new compact loudspeaker designs with appropriately scaled performance. Combined with a 1.4” dome compression driver, our 6CXN36 coaxial is one of the most compact and cost effective full range transducers that we have ever built, offering 90 – 18000Hz frequency response and a 90° conical coverage pattern.
Key Features
- 8 ohm LF unit, 16 ohm HF unit
- 200 W continuous program power capacity

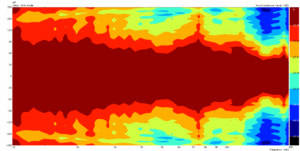

- 90° nominal coverage
- 90 – 18000 Hz response
- 90 dB sensitivity
- Aluminium demodulating ring for very low distortion
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
General
Nominal Diameter: 165 mm (6.5 in)
Nominal Impedance: 8 Ω
Frequency Range: 90 Hz – 18000 Hz
Dispersion Angle: 90 °
Specifications LF Unit
Nominal Diameter: 165 mm (6.5 in)
Nominal Impedance: 8 Ω

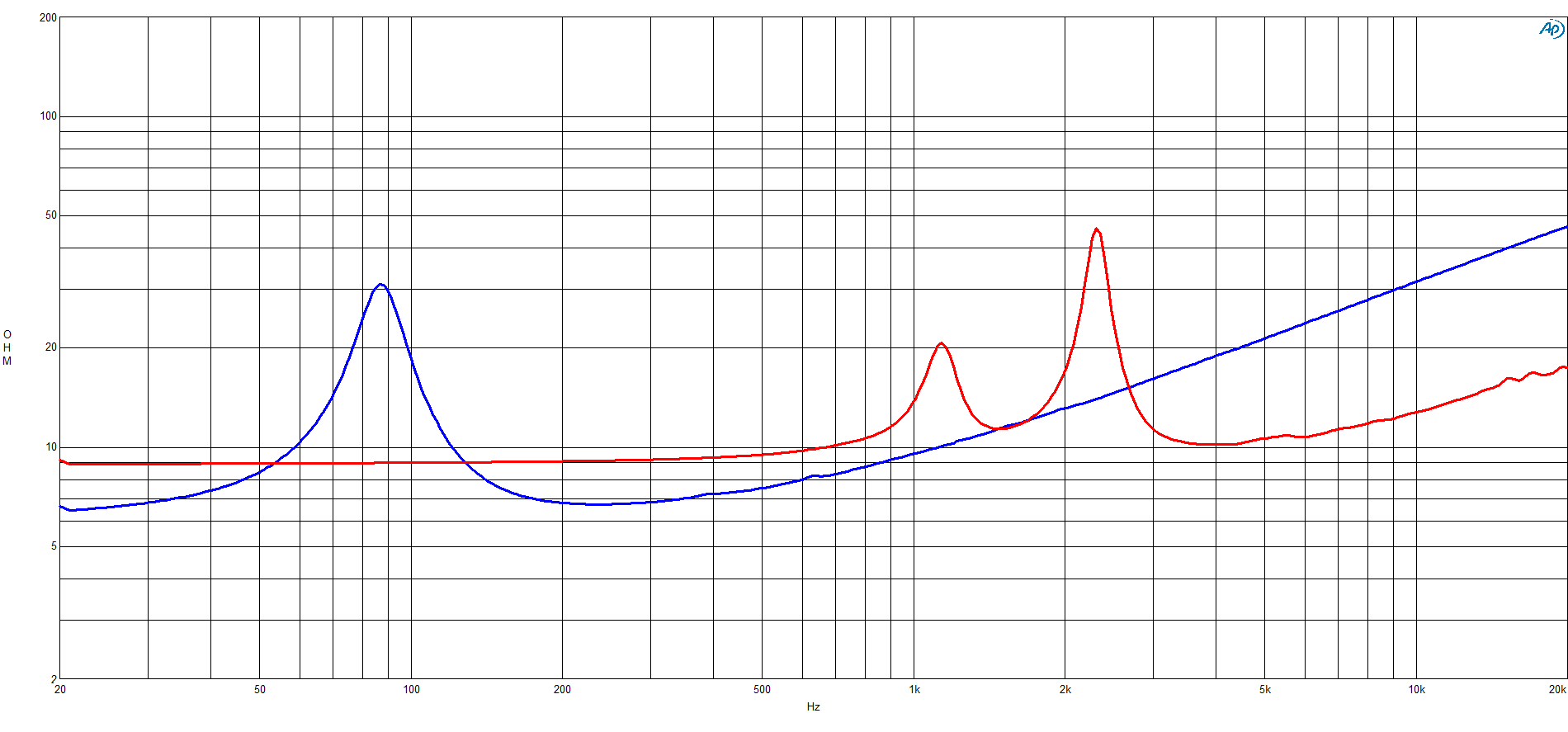

Minimum Impedance: 6.8 Ω
Nominal Power Handling: 100 W
Continuous Power Handling: 200 W
Sensitivity: 90 dB
Voice Coil Diameter: 34 mm (1.3 in)
Winding Material: Copper
Former Material: Glass Fibre
Winding Depth: 11 mm (0.43 in)
Magnetic Gap Depth: 6 mm (0.24 in)
Flux Density: 0.74 T
Woofer Cone Treatment: WP Waterproof Front Side
Specifications HF Unit
Nominal Diameter: 165 mm (6.5 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 10.2 Ω
Nominal Power Handling: 25 W
Continuous Power Handling: 50 W
Sensitivity: 100 dB
Recommended Crossover: 2 kHz
Voice Coil Diameter: 36 mm (1.4 in)
Winding Material: Aluminium
Inductance: 0.14 mH
Flux Density: 1.65 T
Diaphragm Material: HT Polymer
Design
Magnet Material: Neodymium Ring
Woofer Cone Treatment: WP Waterproof Front Side
Parameters
Fs: 90 Hz
Re: 5.8 Ω
Qes: 1.17
Qms: 5
Qts: 0.95
Vas: 7.5 dm³ (0.26 ft³)
Sd: 132 cm² (20.46 in²)
η₀: 0.45 %
Xvar: 5 mm
Mms: 10.2 g
Bl: 5.34 Tm
Le: 0.94 mH
EBP: 77 Hz

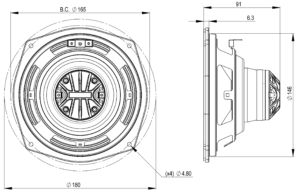

Mounting and Shipping Info
Overall Diameter: 180 mm (7.09 in)
Bolt Circle Diameter: 165 mm (6.5 in)
Baffle Cutout Diameter: 146 mm (5.75 in)
Depth: 91 mm (3.58 in)
Flange and Gasket Thickness: 6 mm (0.25 in)
Net Weight: 0.7 kg (1.54 lb)
Shipping Units: 1 pcs
Shipping Weight: 1.15 kg (2.54 lb)
Shipping Box: 255x255x150 mm (10.04×10.04×5.91 in)
Service Kit
hf Replacement Diaphragm: MMDDE11016
lf Recone Kit: RCK006CXN368
Cone
Gasket
Dust Cap
Wooterprof Treatment
Centering Shims
