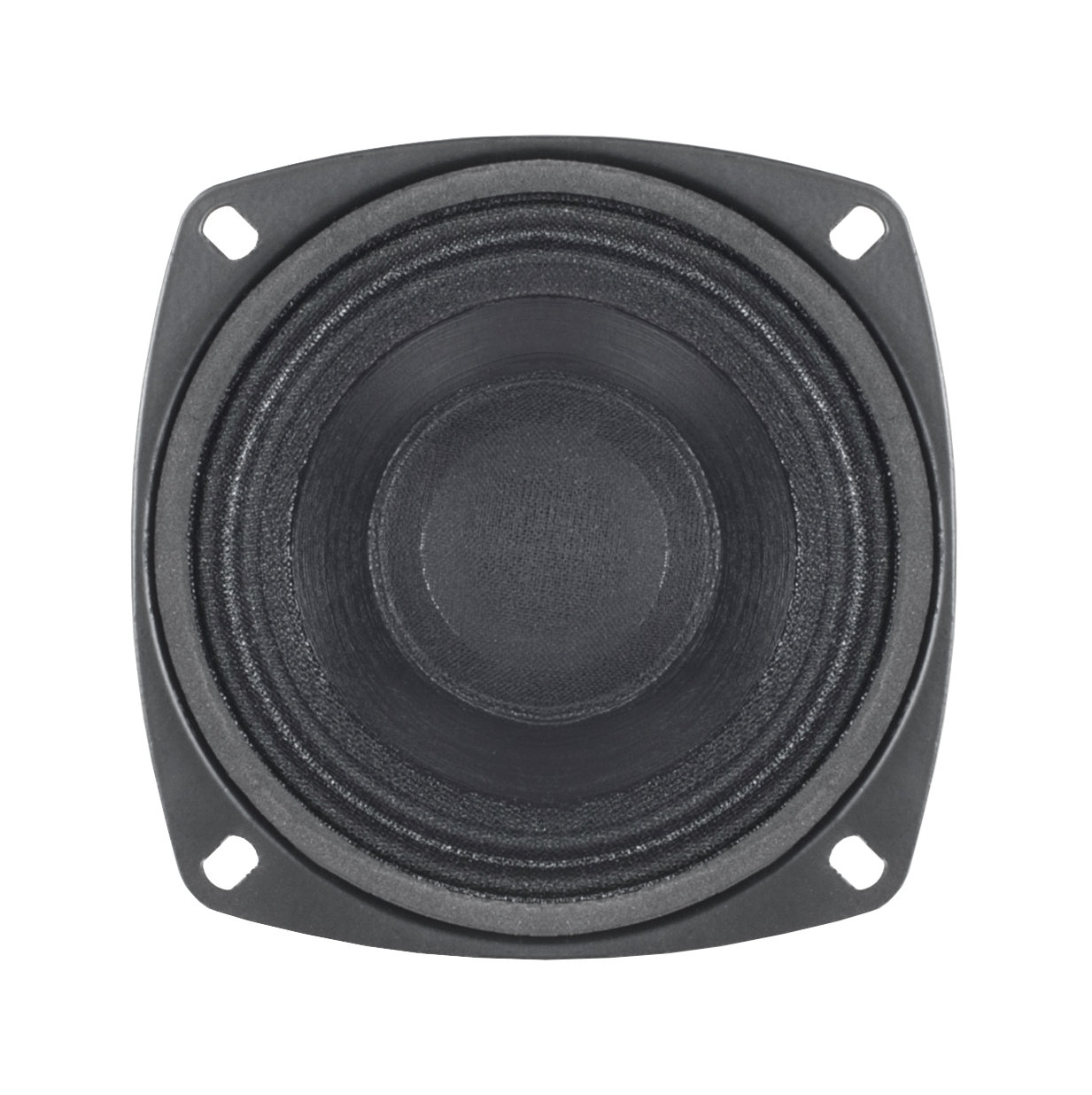

4″ B&C MCX36
Unique to B&C, a complete lineup of high sensitivity and power handling 4”, 5″ and 6.5″ frame transducers. These high technology products are made with our famously critical quality control, allowing new compact loudspeaker designs with appropriately scaled performance.
Combined with a 1.4” dome compression driver, the unique 4MCX36 uses a higher Fs woofer than the standard 4CXN36, for applications where more mid bass and less low frequency is required. The 4MCX36 offers 150 – 18000Hz frequency response and a 70° conical coverage pattern.
Key Features
- 8 ohm LF unit, 16 ohm HF unit
- 200 W continuous program power capacity
- 70° nominal coverage

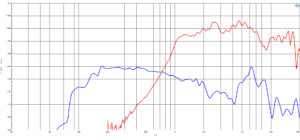

- 150 – 18000 Hz response
- 87 dB sensitivity
- Neodymium magnet allows a very light yet powerful motor assembly
- Aluminium demodulating ring allows a very low distortion figure
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
General
Nominal Diameter: 100 mm (4 in)
Nominal Impedance: 8 Ω
Frequency Range: 150 Hz – 18000 Hz
Dispersion Angle: 70 °
Min Frequency Range: 150 Hz
Max Frequency Range: 18000 Hz
Specifications LF Unit
Nominal Diameter: 100 mm (4 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 6.8 Ω
Nominal Power Handling: 100 W
Continuous Power Handling: 200 W
Sensitivity: 87 dB
Voice Coil Diameter: 34 mm (1.3 in)
Winding Material: Copper
Former Material: Glass Fibre
Winding Depth: 11 mm (0.43 in)
Magnetic Gap Depth: 6 mm (0.24 in)
Flux Density: 0.74 T
Woofer Cone Treatment: WP Waterproof Front Side
Specifications HF Unit
Nominal Diameter: 100 mm (4 in)
Nominal Impedance: 16 Ω
Minimum Impedance: 10.2 Ω
Nominal Power Handling: 25 W
Continuous Power Handling: 50 W
Sensitivity: 102 dB
Recommended Crossover: 2 kHz
Voice Coil Diameter: 36 mm (1.42 in)
Winding Material: Aluminium
Inductance: 0.14 mH
Flux Density: 1.65 T
Diaphragm Material: HT Polymer
Design
Magnet Material: Neodymium Ring
Woofer Cone Treatment: WP Waterproof Front Side
Parameters
Fs: 150 Hz
Re: 5.6 Ω
Qes: 1.2
Qms: 3.9
Qts: 0.91
Vas: 0.8 dm³ (0.03 ft³)
Sd: 56 cm² (8.68 in²)
η₀: 0.22 %
Xvar: 3 mm
Mms: 6.2 g
Bl: 5.27 Tm
Le: 0.87 mH
EBP: 125 Hz
Mounting and Shipping Info
Overall Diameter: 127 mm (5 in)
Bolt Circle Diameter: 114 mm (4.51 in)
Baffle Cutout Diameter: 103 mm (4.06 in)
Depth: 83 mm (3.27 in)
Flange and Gasket Thickness: 2 mm (0.08 in)
Net Weight: 0.55 kg (1.21 lb)
Shipping Units: 1 pcs
Shipping Weight: 0.67 kg (1.48 lb)
Shipping Box: 120x117x110 mm (4.72×4.61×4.33 in)
Service Kit
hf Replacement Diaphragm: MMDDE11016
