4″ B&C CXN36 8Ω|16Ω
Unique to B&C, a complete lineup of high sensitivity and power handling 4”, 5″ and 6.5″ frame transducers. These high technology products are made with our famously critical quality control, allowing new compact loudspeaker designs with appropriately scaled performance. Combined with a 1.4” dome compression driver, our 4CXN36 coaxial is the most compact and cost effective full range transducer we have ever built, offering 110 – 18000Hz frequency response and a 70° conical coverage pattern.
Key Features
- 8 ohm LF unit, 16 ohm HF unit
- 200 W continuous program power capacity

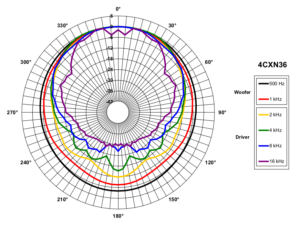

- 70° nominal coverage
- 110 – 18000 Hz response
- 86 dB sensitivity
- Neodymium magnet allows a very light yet powerful motor assembly
- Aluminium demodulating ring allows a very low distortion figure
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
General
Nominal Diameter: 100 mm (4 in)
Nominal Impedance: 8 Ω
Frequency Range: 110 Hz – 18000 Hz
Dispersion Angle: 70 °
Specifications LF Unit
Nominal Diameter: 100 mm (4 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 6.5 Ω
Nominal Power Handling: 100 W
Continuous Power Handling: 200 W
Sensitivity: 86 dB
Voice Coil Diameter: 34 mm (1.3 in)
Winding Material: Copper
Former Material: Glass Fibre
Winding Depth: 11 mm (0.43 in)
Magnetic Gap Depth: 6 mm (0.24 in)
Flux Density: 0.74 T
Woofer Cone Treatment: WP Waterproof Front Side
Specifications HF Unit
Nominal Diameter: 100 mm (4 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 10.2 Ω
Nominal Power Handling: 25 W
Continuous Power Handling: 50 W
Sensitivity: 102 dB
Recommended Crossover: 2 kHz
Voice Coil Diameter: 36 mm (1.42 in)
Winding Material: Aluminium
Inductance: 0.14 mH
Flux Density: 1.65 T
Diaphragm Material: HT Polymer
Design
Magnet Material: Neodymium Ring
Woofer Cone Treatment: WP Waterproof Front Side
Parameters
Fs: 113 Hz
Re: 5.6 Ω
Qes: 0.9
Qms: 12.7
Qts: 0.83
Vas: 1.5 dm³ (0.05 ft³)
Sd: 56 cm² (8.68 in²)
η₀: 0.22 %
Xvar: 5 mm
Mms: 6 g
Bl: 5.13 Tm
Le: 0.3 mH
EBP: 126 Hz

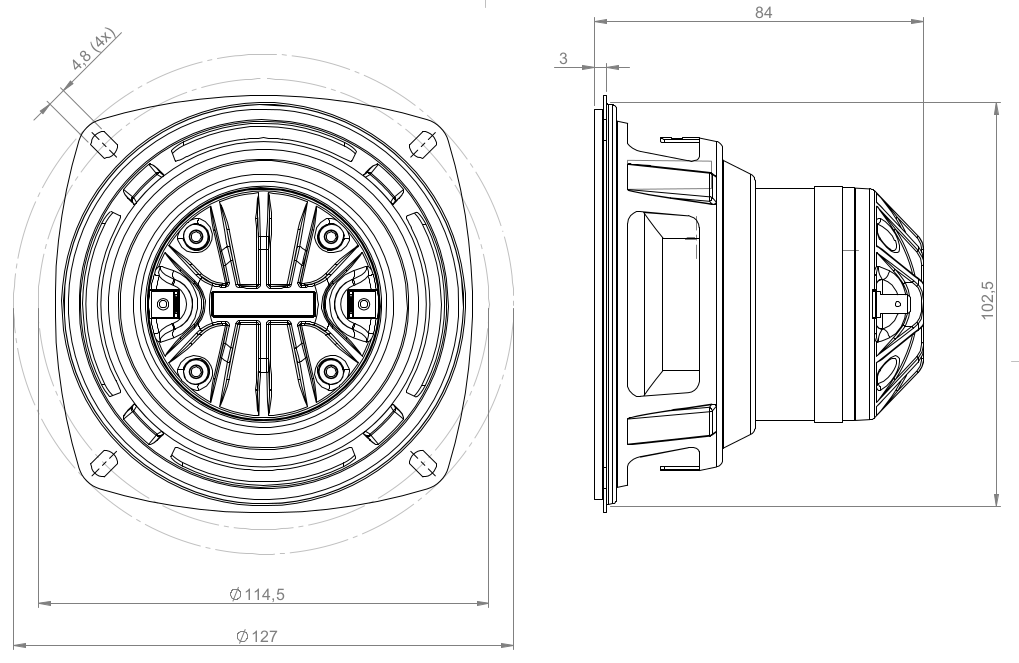

Mounting and Shipping Info
Overall Diameter: 127 mm (5 in)
Bolt Circle Diameter: 114 mm (4.51 in)
Baffle Cutout Diameter: 103 mm (4.06 in)
Depth: 84 mm (3.31 in)
Flange and Gasket Thickness: 3 mm (0.12 in)
Net Weight: 0.55 kg (1.21 lb)
Shipping Units: 1 pcs
Shipping Weight: 0.76 kg (1.68 lb)
Shipping Box: 210x210x125 mm (8.27×8.27×4.92 in)
Service Kit
hf Replacement Diaphragm: MMDDE11016
