21″ B&C Subwoofer SW152 4Ω|8Ω

0 out of 5
( Atsiliepimų dar nėra. )

Key Features

  • 4000 W continuous program power capacity
  • 153 mm (6 in) split winding copper voice coil
  • 30 – 1000 Hz response
  • 96 dB sensitivity
  • Neodymium magnet allows a very high force factor and linear excursion
  • Double silicone spider with optimized compliance
  • Ventilated voice coil gap for reduced power compression
  • Aluminium demodulating ring for very low distortion

Teirautis telefonu

+37069873838

darius@combo.lt

Facebook Twitter Linkedin
Availability: Išankstinis užsakymas Categories , , , Tags , ,

Aprašymas

SPECIFICATIONS
Nominal Basket Diameter 21″ / 530mm
Impedance 4 or 8 ohms
RMS Power Rating 2,000 Watts
Program Power  4,000 Watts
Frequency Response 30Hz – 1.0kHz
Sensitivity (1W/1m) 96dB
Voice Coil Diameter 6” / 152.4mm
Winding Material Copper
Former Material Glass Fibre
Winding Depth 1.18″ / 30mm
Magnetic Gap Depth .5″ / 12mm
Flux Density 1.2T
RECOMMENDED CABINET SPECIFICATIONS
Cabinet Volume 6.7 cu. ft. / 190 Liters
Port Size 24″ wide x 2.0″ height  x 19.75″ deep
Tuning Frequency 33Hz
MOUNTING INFORMATION
Overall Diameter 21.5” / 547mm
Bolt Circle Diameter 20.7” / 527mm
Baffle Cutout Diameter 20″ / 508mm
Depth 10.3″ / 261mm
Flange & Gasket Thickness .63″ / 16mm
No. Of Mounting Holes 8
Net Weight 40.7 lbs./ 18.5 kg.
Shipping Weight 46 lbs./ 20.9 kg.
MATERIALS
Basket Cast Aluminum
Cone Paper
Cone Shape Radial
Spider Double Silicone
Surround Shape Triple Roll
Pole Dsign T-Pole
Magnet Neodymium
  THIELE-SMALL PARAMETERS
Resonant Frequency (fs) 32 Hz
Impedance (Re) 3.4 ohms
Electrical Factor (Qes) .31
Mechanical Q (Qms) 7.0
Total Q (Qts) .3
Compliance Equiv. Vol. (Vas) 200 Liters/7.0cu. ft.
Voice Coil Overhang (Xmax) 15.0mm
Reference Efficiency 2%
Surface Area of Cone .1680 m2
BL Factor 32.5 T-M
Coil Inductance (Le) 1.5mH

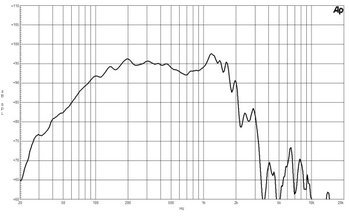

FREQUENCY RESPONSE

Specification PDF
