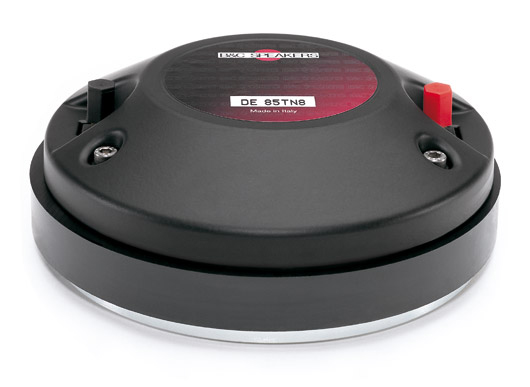

2″ B&C DE85TN
Key Features
- 220 W continuous program power capacity
- 2″ horn throat diameter
- 75 mm (3 in) aluminium voice coil
- Titanium diaphragm
- 500 – 18000 Hz response
- 107 dB sensitivity
- Shorting copper cap for extended HF response
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Throat Diameter: 50 mm (2 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 8.2 Ω
Nominal Power Handling: 110 W
Continuous Power Handling: 220 W
Sensitivity: 107 dB
Frequency Range: 0.5 kHz – 18 kHz
Recommended Crossover: 1 kHz
Voice Coil Diameter: 75 mm (3 in)
Winding Material: Aluminium
Inductance: 0.14 mH
Flux Density: 1.8 T
Diaphragm Material: Titanium
Min Frequency Range: 0.5 Hz
Max Frequency Range: 18 Hz
Mounting and Shipping Info
Mounting: Four M6 holes 90° on 102 mm (4 in) diameter
Overall Diameter: 170 mm (6.7 in)
Depth: 64 mm (2.5 in)
Net Weight: 4.4 kg (9.7 lb)
Shipping Units: 1 pcs
Shipping Weight: 4.52 kg (9.96 lb)
Shipping Box: 190x190x80 mm (7.48×7.48×3.15 in)
Service Kit
hf Replacement Diaphragm: MMD3ATN8
