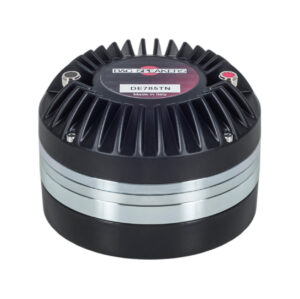

2″ B&C DE785TN
While shrink-ray technology may not have escaped the 1990s, we have succeeded in creating two more highly compact drivers, not only permitting close spacing but also reducing weight and cost at the same time. In a larger, 3” coil we now offer the DE785: Designed with a sonic character like our famous DE950TN, but in a 112mm diameter package weighing only 4 lb (1.8kg). Continuous power handling of 220W combined with 107.5dB sensitivity primes this driver for consideration in a new generation of lighter, more compact line array loudspeakers.
Key Features
- 220 W continuous program power capacity
- 2″ horn throat diameter
- 75 mm (3 in) aluminum voice coil
- Titanium diaphragm

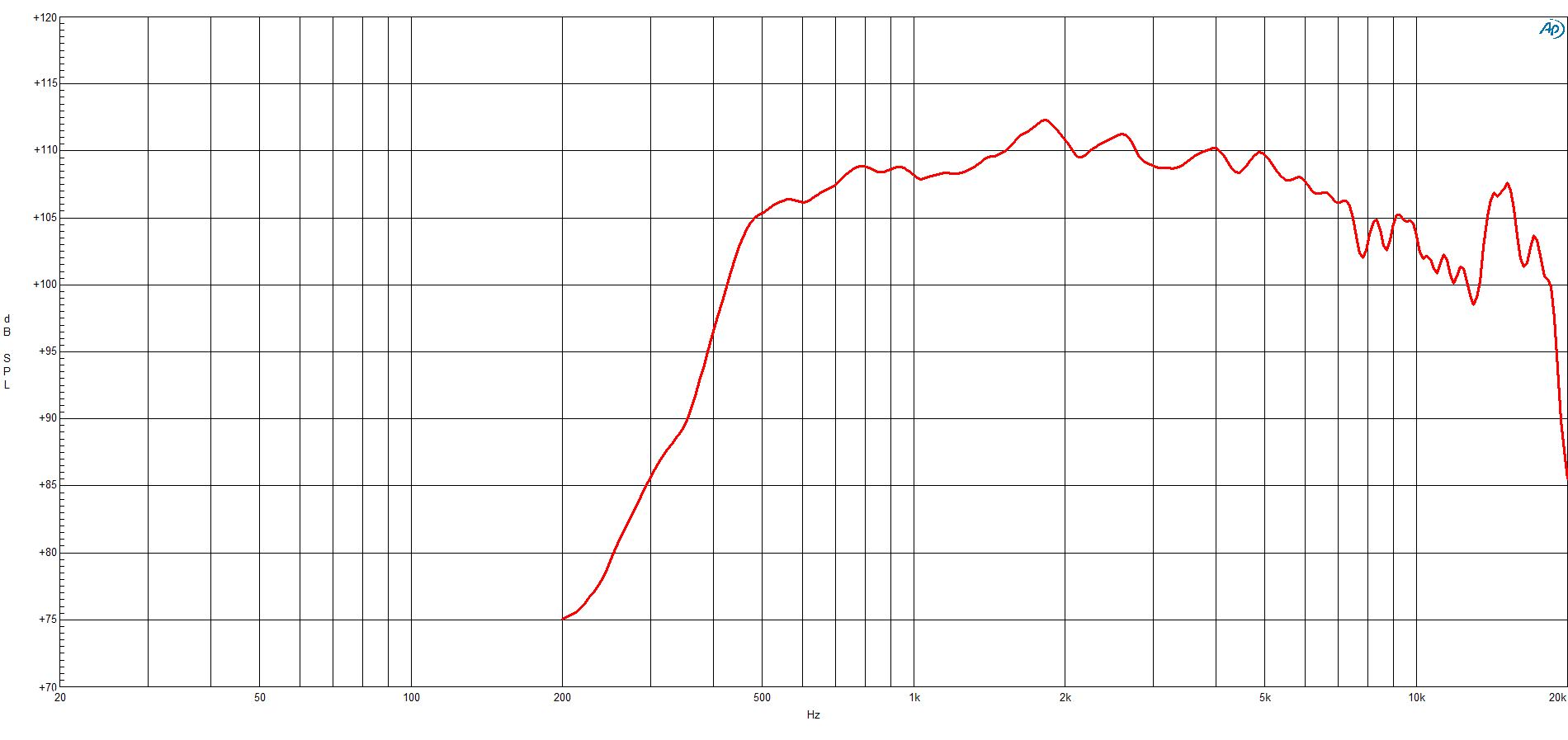

- 500 – 18000 Hz response
- 107.5 dB sensitivity
- Neodymium magnet assembly with shorting copper cap
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Throat Diameter: 50 mm (2 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 8.3 Ω
Nominal Power Handling: 110 W
Continuous Power Handling: 220 W
Sensitivity: 107.5 dB
Frequency Range: 0.5 kHz – 18 kHz
Recommended Crossover: 1 kHz
Voice Coil Diameter: 75 mm (3 in)
Winding Material: Aluminium
Inductance: 0.17 mH
Flux Density: 1.95 T
Diaphragm Material: Titanium
Min Frequency Range: 0.5 Hz
Max Frequency Range: 18 Hz
Mounting and Shipping Info
Mounting: Four M5 holes 90° on 102 mm (4 in) diameter
Overall Diameter: 112 mm (4.41 in)
Depth: 77 mm (3.03 in)
Net Weight: 1.75 kg (3.86 lb)
Shipping Units: 1 pcs
Shipping Weight: 1.82 kg (4.01 lb)
Shipping Box: 135x135x93 mm (5.31×5.31×3.66 in)
Service Kit
hf Replacement Diaphragm: MMD3FTN8M
