18″ B&C Subwoofer DS115 4Ω|8Ω
This next evolution subwoofer uses a new, longer, four layer aluminum voice coil. The result is more energy in the gap, less heat, higher sensitivity, higher power handling, lower distortion and better overall performance. The 18DS115 features a 40mm long, 4.5 inch diameter (116mm) Copper Clad Aluminum Wire voice coil. With a 1700watt AES power rating, 97 dB sensitivity, and over 14.0mm of Xvar, this high energy subwoofer is a significant step forward from similar models in the B&C range.
Key Features
- 3400 W continuous program power capacity
- 116 mm (4.5 in) four layer aluminum voice coil
- 30 – 500 Hz response
- 97 dB sensitivity
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
- Aluminium demodulating ring for very low distortion
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Nominal Diameter: 460 mm (18 in)
Minimum Impedance: 4.5 Ω
Continuous Power Handling: 3400 W
Frequency Range: 30 Hz – 500 Hz
Winding Material: Aluminium
Winding Depth: 40 mm (1.57 in)
Flux Density: 0.8 T
Nominal Impedance: 4 Ω
Nominal Power Handling: 1700 W
Sensitivity: 97 dB
Voice Coil Diameter: 116 mm (4.5 in)
Former Material: Glass Fibre
Magnetic Gap Depth: 14 mm (0.55 in)
Woofer Cone Treatment: TWP Waterproof Both Sides
Parameters
Fs: 30 Hz
Qes: 0.18
Qts: 0.17
Sd: 1210 cm² (187.55 in²)
Xmax: 16.5 mm
Mms: 348 g
Le: 2.8 mH
Re: 3.3 Ω
Qms: 4.75
Vas: 177 dm³ (6.25 ft³)
η₀: 2.3 %
Xvar: 14 mm
Bl: 34 Tm
EBP: 167 Hz
Design
Surround Shape: Triple Roll
Magnet Material: Neodymium Inside Slug
Pole Design: T-Pole
Recommended Enclosure: 100 dm³ (3.53 ft³)
Cone Shape: Radial
Spider: Double Silicone
Woofer Cone Treatment: TWP Waterproof Both Sides
Recommended Tuning: 40 Hz

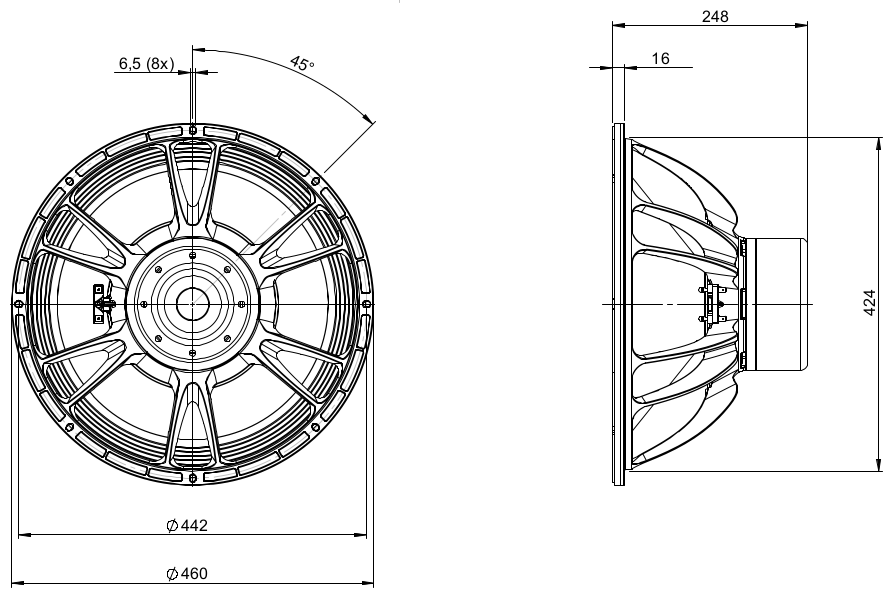

Mounting and Shipping Info
Overall Diameter: 460 mm (18.11 in)
Baffle Cutout Diameter: 422 mm (16.61 in)
Flange and Gasket Thickness: 16 mm (0.63 in)
Net Weight: 12.55 kg (27.67 lb)
Shipping Weight: 14.15 kg (31.2 lb)
Bolt Circle Diameter: 442 mm (17.4 in)
Depth: 248 mm (9.76 in)
Air Volume Occupied by Driver: 10 dm³ (0.35 ft³)
Shipping Units: 1 pcs
Shipping Box: 500x495x275 mm (19.69×19.49×10.83 in)
Service Kit
Recone Kit: RCK18DS1154
Cone
Gasket
Centering Shims
