15″ B&C Woofer NA100
Key Features
- 1600 W continuous program power capacity
- 100 mm (4 in) aluminium voice coil
- 45 – 2000 Hz response
- 98 dB sensitivity
- FEA optimized Neodymium magnet assembly
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Nominal Diameter: 380 mm (15 in)
Minimum Impedance: 6.6 Ω
Continuous Power Handling: 1600 W
Frequency Range: 45 Hz – 2000 Hz
Winding Material: Aluminium
Winding Depth: 23 mm (0.9 in)
Flux Density: 1.2 T
Nominal Impedance: 8 Ω
Nominal Power Handling: 800 W
Sensitivity: 98 dB
Voice Coil Diameter: 100 mm (4 in)
Former Material: Glass Fibre
Magnetic Gap Depth: 11 mm (0.43 in)
Woofer Cone Treatment: WP Waterproof Front Side
Parameters
Fs: 47 Hz
Qes: 0.29
Qts: 0.28
Sd: 855 cm² (132.5 in²)
Xmax: 10 mm
Mms: 136 g
Le: 1.2 mH
Re: 5.1 Ω
Qms: 6.1
Vas: 88 dm³ (3.1 ft³)
η₀: 2.9 %
Xvar: 9 mm
Bl: 26.3 Tm
EBP: 162 Hz
Design
Surround Shape: Triple Roll
Magnet Material: Neodymium Inside Slug
Pole Design: T-Pole

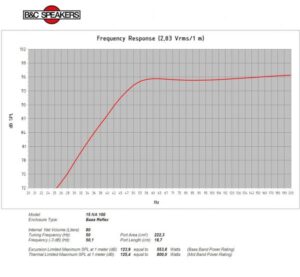

Recommended Enclosure: 80 dm³ (2.82 ft³)
Cone Shape: Exponential
Spider: Double Silicone
Woofer Cone Treatment: WP Waterproof Front Side
Recommended Tuning: 50 Hz
Mounting and Shipping Info
Overall Diameter: 393 mm (15.5 in)
Baffle Cutout Diameter: 354 mm (13.9 in)
Flange and Gasket Thickness: 16 mm (0.62 in)
Net Weight: 8.6 kg (18.96 lb)
Shipping Weight: 9.9 kg (21.83 lb)
Bolt Circle Diameter: 374 mm (14.7 in)
Depth: 180 mm (7.09 in)
Air Volume Occupied by Driver: 6 dm³ (0.21 ft³)
Shipping Units: 1 pcs
Shipping Box: 425x425x224 mm (16.73×16.73×8.82 in)
Service Kit
Recone Kit: RCK15NA1008
Cone
Gasket
Centering Shims
