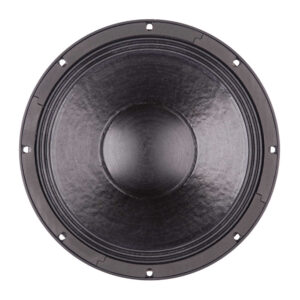

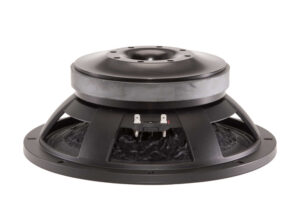

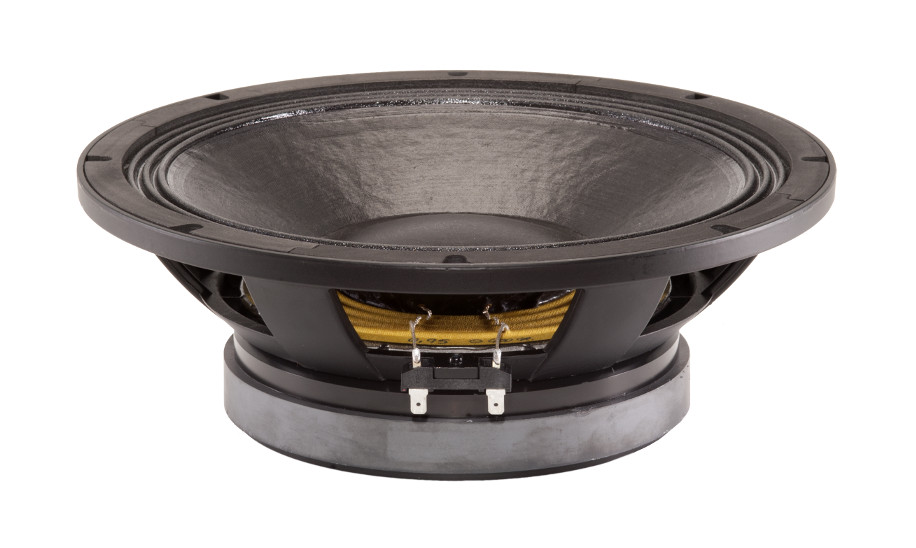

12″ B&C Woofer PLB100
Key Features
- 1200 W continuous program power capacity
- 100 mm (4 in) aluminium voice coil
- 50 – 2500 Hz response
- 97 dB sensitivity
- Aluminium demodulating ring allows a very low distortion figure
- Ventilated voice coil gap for reduced power compression
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Nominal Diameter: 320 mm (12 in)
Minimum Impedance: 6 Ω
Continuous Power Handling: 1200 W
Frequency Range: 50 Hz – 2500 Hz
Winding Material: Aluminium
Winding Depth: 23 mm (0.91 in)
Flux Density: 1 T
Nominal Impedance: 8 Ω
Nominal Power Handling: 600 W
Sensitivity: 97 dB
Voice Coil Diameter: 100 mm (4 in)
Former Material: Glass Fibre
Magnetic Gap Depth: 10 mm (0.39 in)
Woofer Cone Treatment: WP Waterproof Front Side
Parameters
Fs: 50 Hz
Qes: 0.38
Qts: 0.37
Sd: 531 cm² (82 in²)
Xmax: 9 mm
Mms: 77 g
Le: 1.6 mH
Re: 5.1 Ω
Qms: 9.2
Vas: 47 dm³ (1.66 ft³)
η₀: 1.7 %
Xvar: 7 mm
Bl: 18.4 Tm
EBP: 132 Hz
Design
Surround Shape: Triple Roll
Magnet Material: Ferrite
Pole Design: T-Pole
Recommended Enclosure: 40 dm³ (1.41 ft³)
Cone Shape: Radial
Spider: Single
Woofer Cone Treatment: WP Waterproof Front Side
Recommended Tuning: 52 Hz

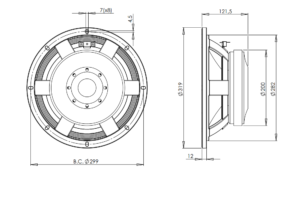

Mounting and Shipping Info
Overall Diameter: 319 mm (12.5 in)
Baffle Cutout Diameter: 282 mm (11.1 in)
Flange and Gasket Thickness: 12 mm (0.47 in)
Net Weight: 8.4 kg (18.52 lb)
Shipping Weight: 9.3 kg (20.5 lb)
Bolt Circle Diameter: 299 mm (11.8 in)
Depth: 122 mm (4.8 in)
Air Volume Occupied by Driver: 3.5 dm³ (0.12 ft³)
Shipping Units: 1 pcs
Shipping Box: 360x360x200 mm (14.17×14.17×7.87 in)
Service Kit
Recone Kit: RCK12PLB1008
Cone
Gasket
Centering Shims
