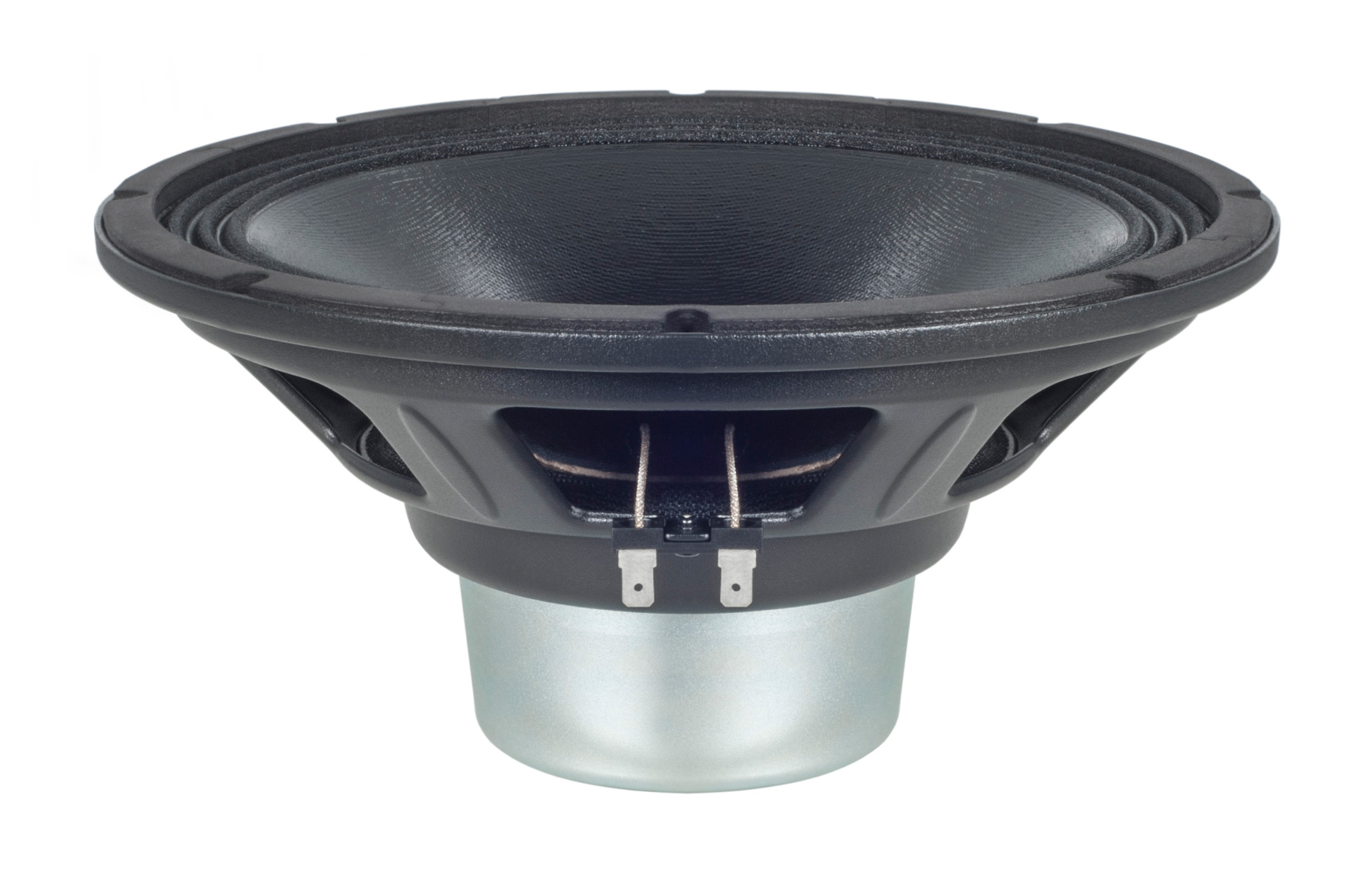

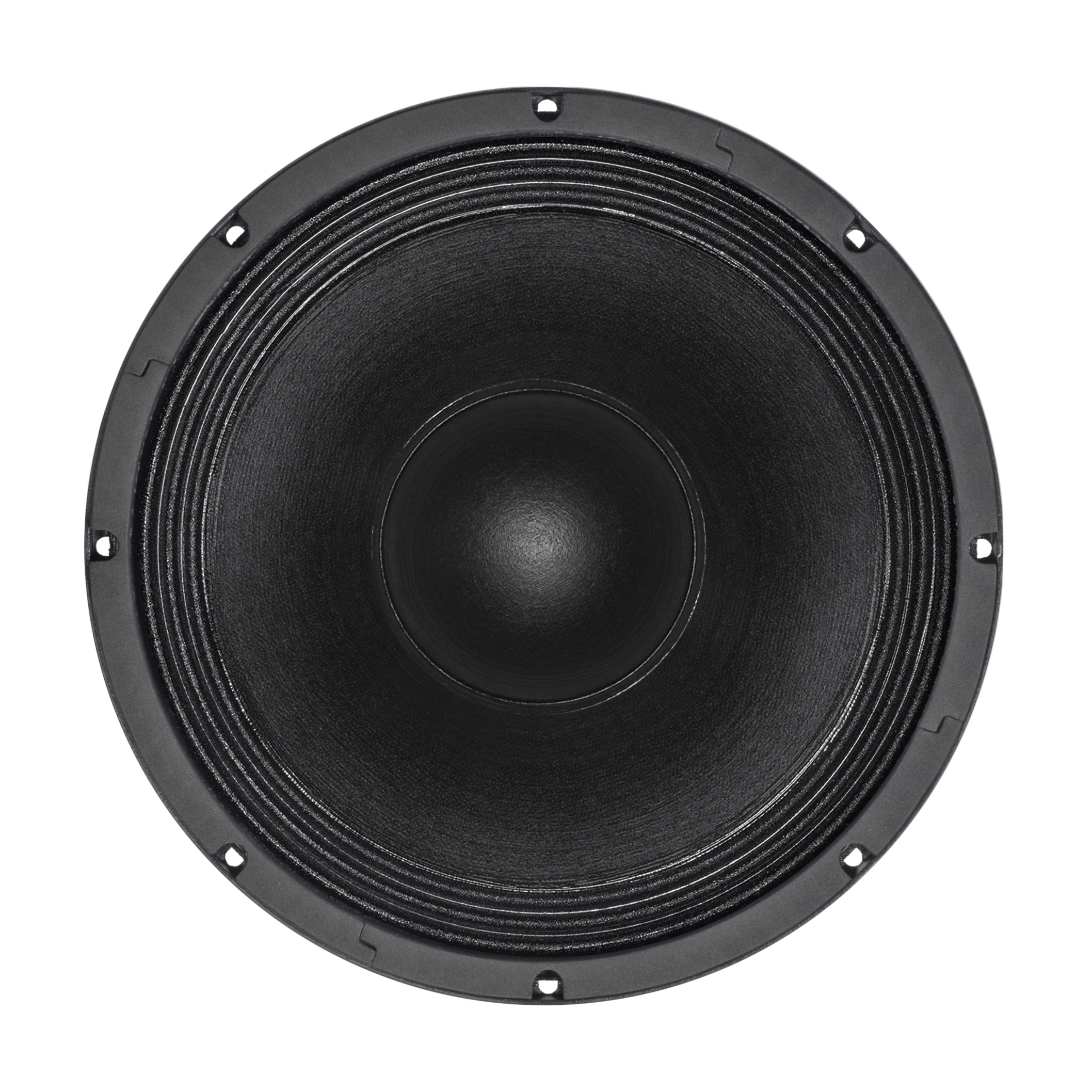

10″ B&C Woofer CLA76
Careful optimization of our lightest woofer series, now offered with a high temperature copper-clad aluminum voice coil, is rewarded with higher sensitivity and smoother high frequency response. Larger motor makes these a good fit for many more applications, especially where flown, and manufacturing design means the CLA series can be price competitive with ferrite motor designs offering similar performance.
Key Features
- 800 W continuous program power capacity
- 76 mm (3 in) aluminum voice coil
- 70 – 2500 Hz response
- 96.5 dB sensitivity
- Ventilated voice coil gap for reduced power compression
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Nominal Diameter: 250 mm (10 in)
Minimum Impedance: 6.5 Ω
Continuous Power Handling: 800 W
Frequency Range: 70 Hz – 2500 Hz
Winding Material: Aluminium
Winding Depth: 18.5 mm (0.73 in)
Flux Density: 1.2 T
Nominal Impedance: 8 Ω
Nominal Power Handling: 400 W
Sensitivity: 96.5 dB
Voice Coil Diameter: 76 mm (3 in)
Former Material: Glass Fibre
Magnetic Gap Depth: 11 mm (0.43 in)
Woofer Cone Treatment: TWP Waterproof Both Sides
Parameters
Fs: 71 Hz
Qes: 0.3
Qts: 0.29
Sd: 320 cm² (49.6 in²)
Xmax: 6.5 mm
Mms: 44.7 g
Le: 1.14 mH
Re: 5.2 Ω
Qms: 6.72
Vas: 16.4 dm³ (0.58 ft³)
η₀: 1.92%
Xvar: 7 mm
Bl: 18.55 Tm
EBP: 237 Hz
Design
Surround Shape: Triple Roll
Magnet Material: Neodymium Inside Slug
Pole Design: T-Pole

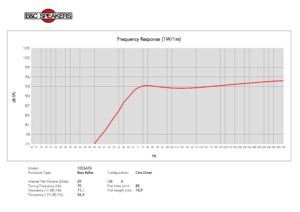

Recommended Enclosure: 29 dm³ (1.02 ft³)
Cone Shape: Exponential
Spider: Single
Woofer Cone Treatment: TWP Waterproof Both Sides
Recommended Tuning: 70 Hz

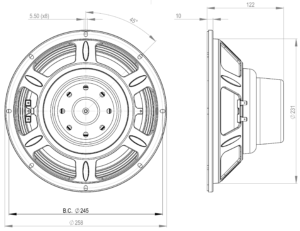

Mounting and Shipping Info
Overall Diameter: 258 mm (10.16 in)
Baffle Cutout Diameter: 232 mm (9.13 in)
Flange and Gasket Thickness: 10 mm (0.39 in)
Net Weight: 3.15 kg (6.94 lb)
Shipping Weight: 3.75 kg (8.27 lb)
Bolt Circle Diameter: 245 mm (9.65 in)
Depth: 122 mm (4.8 in)
Air Volume Occupied by Driver: 1.6 dm³ (0.06 ft³)
Shipping Units: 1 pcs
Shipping Box: 295x314x175 mm (11.61×12.36×6.89 in)
Service Kit
Recone Kit: RCK10CLA768
Cone
Gasket
Dust Cap
Wooterprof Treatment
Centering Shims
