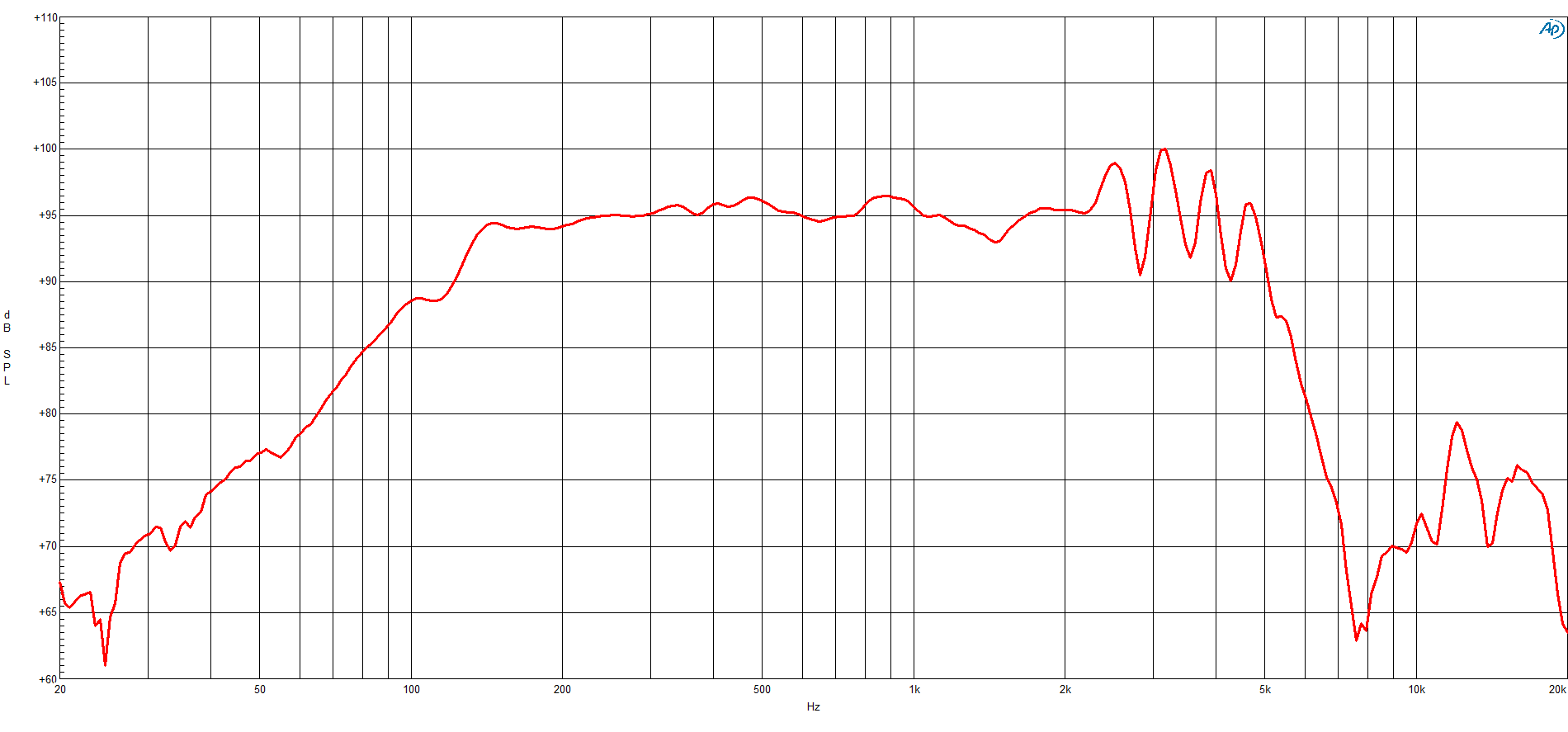

2018_03_20_14_12_41_62_SPL_8
2018_03_20_14_12_41_63_IMP_8
2018_03_20_14_12_41_64_Bass_Reflex_29L_65Hz
2018_03_22_09_06_29_340_10CLA64_drawing

10″ B&C Woofer CLA64 8Ω|16Ω

0 out of 5
( Atsiliepimų dar nėra. )

Careful optimization of our lightest woofer series, now offered with a high temperature copper-clad aluminum voice coil, is rewarded with higher sensitivity and smoother high frequency response. Larger motor makes these a good fit for many more applications, especially where flown, and manufacturing design means the CLA series can be price competitive with ferrite motor designs offering similar performance.

Key Features

  • 500 W continuous program power capacity
  • 64 mm (2.5 in) aluminum voice coil
  • 75 – 4000 Hz response
  • 96 dB sensitivity

Teirautis telefonu

+37069873838

darius@combo.lt

Facebook Twitter Linkedin
Availability: Išankstinis užsakymas Categories , , , Tags , ,

Aprašymas

Specifications

Nominal Diameter: 250 mm (10 in)
Minimum Impedance: 6.3 Ω
Continuous Power Handling: 500 W
Frequency Range: 75 Hz – 4000 Hz
Winding Material: Aluminium
Winding Depth: 14 mm (0.55 in)
Flux Density: 1.15 T
Nominal Impedance: 8 Ω
Nominal Power Handling: 250 W
Sensitivity: 96 dB
Voice Coil Diameter: 64 mm (2.5 in)
Former Material: Glass Fibre
Magnetic Gap Depth: 8 mm (0.31 in)
Woofer Cone Treatment: WP Waterproof Front Side

Parameters

Fs: 74 Hz
Qes: 0.45
Qts: 0.42
Sd: 320 cm² (49.6 in²)
Xmax: 5 mm
Mms: 36 g
Le: 0.9 mH
Re: 5.5 Ω
Qms: 6.8
Vas: 18.5 dm³ (0.65 ft³)
η₀: 1.65%
Xvar: 5 mm
Bl: 14.5 Tm
EBP: 164 Hz

Design

Surround Shape: Double Roll
Magnet Material: Neodymium Inside Slug
Pole Design: Straight Pole
Recommended Enclosure: 29 dm³ (1.02 ft³)
Cone Shape: Exponential
Spider: Single
Woofer Cone Treatment: WP Waterproof Front Side
Recommended Tuning: 65 Hz

Mounting and Shipping Info

Overall Diameter: 257 mm (10.12 in)
Baffle Cutout Diameter: 232 mm (9.13 in)
Flange and Gasket Thickness: 9 mm (0.35 in)
Net Weight: 1.85 kg (4.08 lb)
Shipping Weight: 2.45 kg (5.4 lb)
Bolt Circle Diameter: 245 mm (9.65 in)
Depth: 111 mm (4.39 in)
Air Volume Occupied by Driver: 1 dm³ (0.04 ft³)
Shipping Units: 1 pcs
Shipping Box: 295x314x175 mm (11.61×12.36×6.89 in)

Service Kit

Recone Kit: RCK10CLA648
Cone
Gasket
Dust Cap
Wooterprof Treatment
Centering Shims

Specifications PDF
