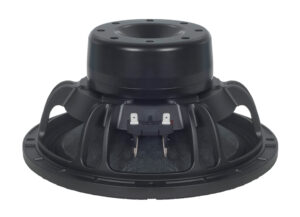

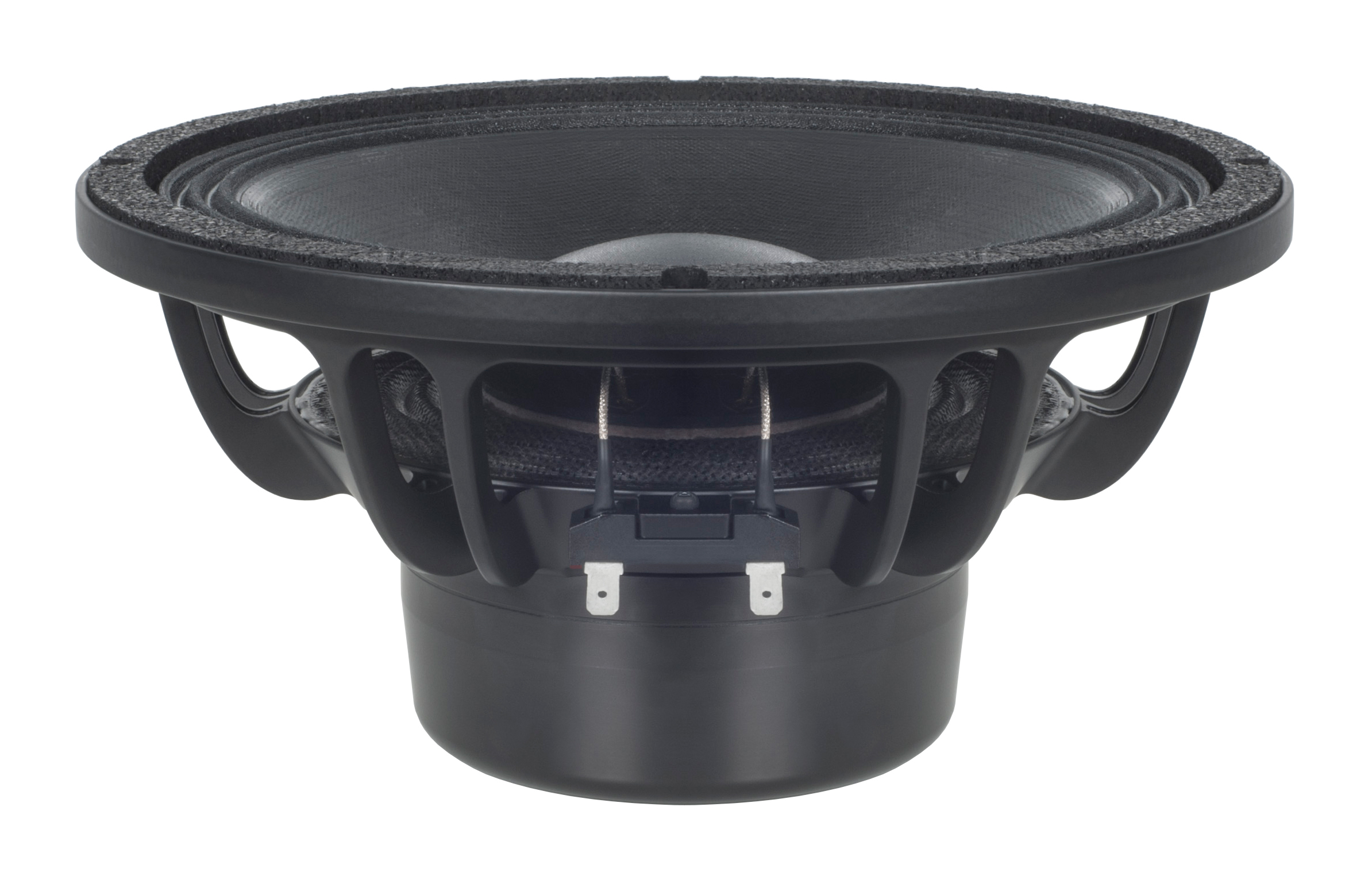

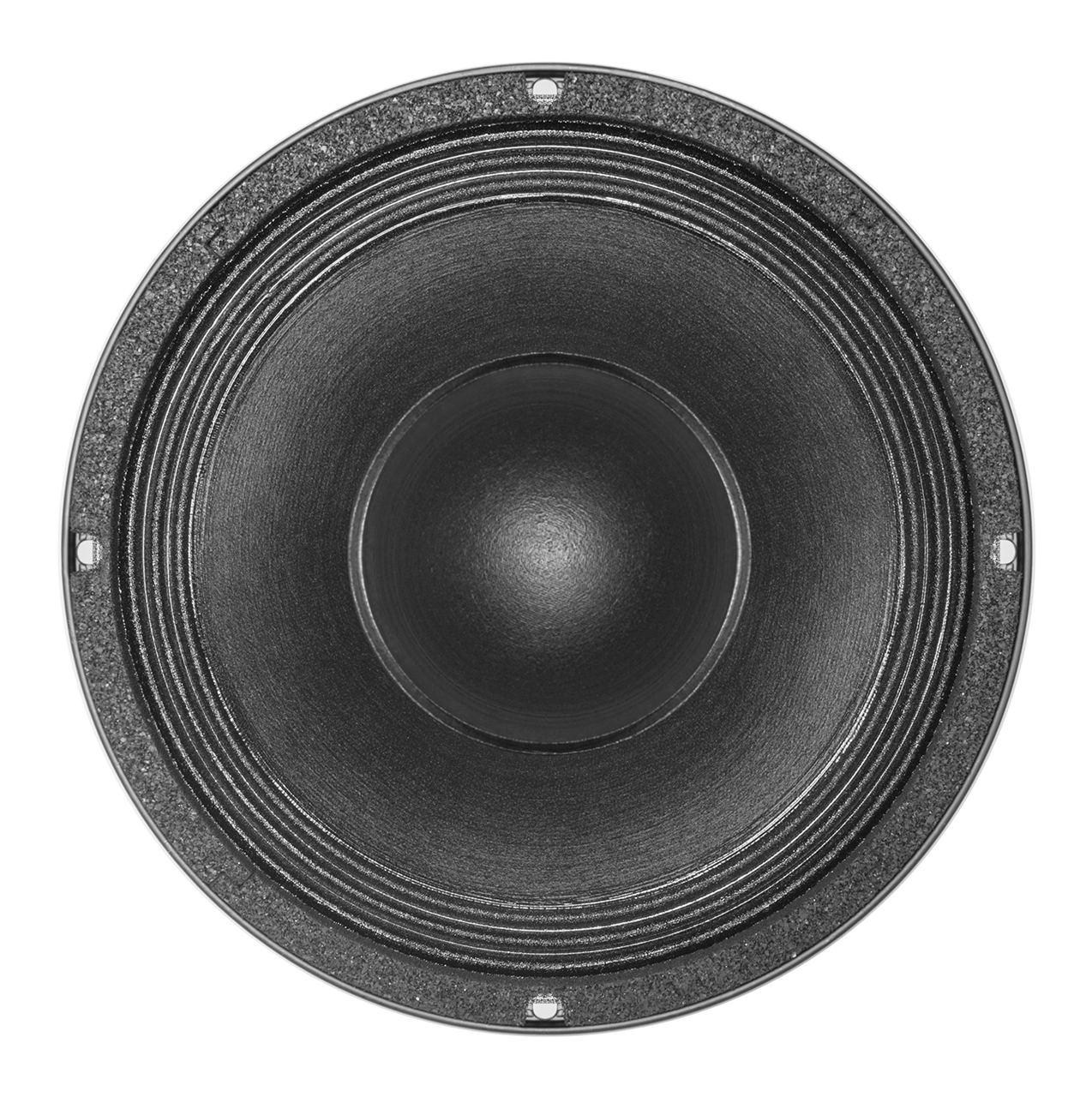

10″ B&C Woofer NDL88
Key Features
- 1400 W continuous program power capacity
- 88 mm (3.5 in) aluminIum wire voice coil
- 61 – 2500 Hz response
- 96 dB sensitivity
- Neodymium magnet allows a very light yet powerful motor assembly
- Aluminium demodulating ring for very low distortion
- Ventilated voice coil gap for reduced power
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Nominal Diameter: 250 mm (10 in)
Minimum Impedance: 6.3 Ω
Continuous Power Handling: 1400 W
Frequency Range: 61 Hz – 2500 Hz
Winding Material: Aluminium
Winding Depth: 21.7 mm (0.85 in)
Flux Density: 1.05 T
Nominal Impedance: 8 Ω
Nominal Power Handling: 700 W
Sensitivity: 96 dB
Voice Coil Diameter: 88 mm (3.5 in)
Former Material: Glass Fibre
Magnetic Gap Depth: 11 mm (0.43 in)
Woofer Cone Treatment: WP Waterproof Front Side
Parameters
Fs: 61 Hz
Qes: 0.26
Qts: 0.25
Sd: 320 cm² (49.6 in²)
Xmax: 8.1 mm
Mms: 53.5 g
Le: 1.18 mH
Re: 5.1 Ω
Qms: 7.3
Vas: 18.4 dm³ (0.65 ft³)
η₀: 1.59%
Xvar: 7.5 mm
Bl: 20 Tm
EBP: 235 Hz
Design
Surround Shape: Triple Roll
Magnet Material: Neodymium Inside Slug
Pole Design: T-Pole
Recommended Enclosure: 20 dm³ (0.71 ft³)
Cone Shape: Curvilinear
Spider: Double Silicone
Woofer Cone Treatment: WP Waterproof Front Side
Recommended Tuning: 70 Hz
Mounting and Shipping Info
Overall Diameter: 261 mm (10.28 in)
Baffle Cutout Diameter: 232 mm (9.13 in)
Flange and Gasket Thickness: 14 mm (0.55 in)
Net Weight: 4.6 kg (10.14 lb)
Shipping Weight: 5.2 kg (11.46 lb)
Bolt Circle Diameter: 246 mm (9.69 in)
Depth: 128 mm (5.04 in)
Air Volume Occupied by Driver: 1.5 dm³ (0.05 ft³)
Shipping Units: 1 pcs
Shipping Box: 295x314x175 mm (11.61×12.36×6.89 in)
