10″ B&C Woofer FL64
The 10FL64 is a wide band woofer with voice forward midrange. They are especially appropriate in applications such as KTV or vocal announcements where digital processing may not be in the budget.
Key Features
- 500 W continuous program power capacity
- 64 mm (2.5 in) copper voice coil
- 65 – 2500 Hz response
- 96 dB sensitivity
- Shorting copper cap for extended HF response
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Nominal Diameter: 250 mm (10 in)
Minimum Impedance: 7.3 Ω
Continuous Power Handling: 500 W
Frequency Range: 65 Hz – 2500 Hz
Winding Material: Copper
Winding Depth: 13 mm (0.51 in)
Flux Density: 1.2 T
Nominal Impedance: 8 Ω
Nominal Power Handling: 250 W
Sensitivity: 96 dB
Voice Coil Diameter: 64 mm (2.52 in)
Former Material: Kapton
Magnetic Gap Depth: 9 mm (0.35 in)
Woofer Cone Treatment: WP Waterproof Front Side
Parameters
Fs: 63 Hz
Qes: 0.34
Qts: 0.32
Sd: 320 cm² (50 in²)
Xmax: 5 mm
Mms: 38 g
Le: 0.7 mH
Re: 5.6 Ω
Qms: 5.4
Vas: 23 dm³ (0.81 ft³)
η₀: 1.7 %
Xvar: 6 mm
Bl: 16 Tm
EBP: 185 Hz
Design
Surround Shape: Double Roll
Magnet Material: Ferrite
Pole Design: Straight Pole
Recommended Enclosure: 25 dm³ (0.88 ft³)
Cone Shape: Exponential
Spider: Single
Woofer Cone Treatment: WP Waterproof Front Side

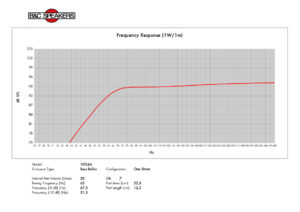

Recommended Tuning: 65 Hz
Mounting and Shipping Info
Overall Diameter: 261 mm (10.28 in)
Baffle Cutout Diameter: 230 mm (8.8 in)
Flange and Gasket Thickness: 12 mm (0.49 in)
Net Weight: 4.8 kg (10.58 lb)
Shipping Weight: 5.4 kg (11.9 lb)
Bolt Circle Diameter: 245 mm (9.6 in)
Depth: 105 mm (4.13 in)
Air Volume Occupied by Driver: 2 dm³ (0.07 ft³)
Shipping Units: 1 pcs
Shipping Box: 295x314x175 mm (11.61×12.36×6.89 in)
Service Kit
Recone Kit: RCK10FL648
Cone
Gasket
Centering Shims
