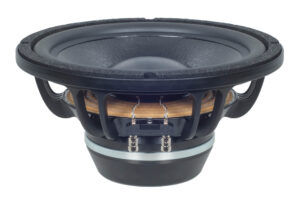

10″ B&C Woofer BG76
Key Features
- 1000 W continuous program power capacity
- 76 mm (3 in) copper voice coil
- 49 – 800 Hz response
- 91.5 dB sensitivity
- Neodymium magnet allows a very light yet powerful motor assembly
- Aluminium demodulating ring for very low distortion
- Double silicone spider with optimized compliance
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Nominal Diameter: 250 mm (10 in)
Minimum Impedance: 6.8 Ω
Continuous Power Handling: 1000 W
Frequency Range: 49 Hz – 800 Hz
Winding Material: Copper
Winding Depth: 25 mm (1 in)
Flux Density: 1.22 T
Nominal Impedance: 8 Ω
Nominal Power Handling: 500 W
Sensitivity: 91.5 dB
Voice Coil Diameter: 76 mm (3 in)
Former Material: Glass Fibre
Magnetic Gap Depth: 11.5 mm (0.45 in)
Woofer Cone Treatment: TWP Waterproof Both Sides
Parameters
Fs: 49 Hz
Qes: 0.23
Qts: 0.22
Sd: 320 cm² (49.6 in²)
Xmax: 9.6 mm
Mms: 91.4 g
Le: 1.37 mH
Re: 4.1 Ω
Qms: 5.74
Vas: 16.7 dm³ (0.59 ft³)
η₀: 0.86%
Xvar: 12 mm
Bl: 22.4 Tm
EBP: 213 Hz
Design
Surround Shape: Roll
Magnet Material: Neodymium Ring
Pole Design: T-Pole
Cone Shape: Curvilinear
Spider: Double Silicone
Woofer Cone Treatment: TWP Waterproof Both Sides
Mounting and Shipping Info
Overall Diameter: 261 mm (10.28 in)
Baffle Cutout Diameter: 233 mm (9.17 in)
Flange and Gasket Thickness: 14 mm (0.55 in)
Net Weight: 4.85 kg (10.69 lb)
Shipping Weight: 5.45 kg (12.02 lb)
Bolt Circle Diameter: 246 mm (9.69 in)
Depth: 131 mm (5.16 in)
Air Volume Occupied by Driver: 1.5 dm³ (0.05 ft³)
Shipping Units: 1 pcs
Shipping Box: 295x314x175 mm (11.61×12.36×6.89 in)
