10″ B&C CXN64
Continuing our never-ending quest for higher output, we now offer our popular single neodymium magnet coaxials with larger voice coils for increased power handling. A significant increase in magnet mass also improves sensitivity and cone control, while integrating our latest compression driver technologies improves sound quality and durability in the HF as well. For high output applications where fidelity at maximum SPL is the primary concern, consider the 10CXN64 with 2.5” LF & HF voice coils. Power handling has increased to 500W, while also improving nearly every other parameter (including Xvar) relative to our established 10″ coax models.
Key Features
- 500 W continuous program power capacity

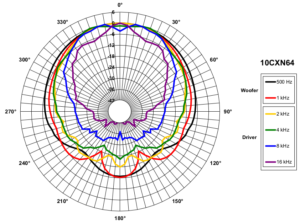

- 70° nominal coverage
- 70 – 18000 Hz response
- 97 dB sensitivity
- Single Neodymium magnet assembly
- Aluminium demodulating ring allows a very low distortion figure
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
General
Nominal Diameter: 250 mm (10 in)
Nominal Impedance: 8 Ω
Frequency Range: 70 Hz – 18000 Hz
Dispersion Angle: 70 °
Specifications LF Unit
Nominal Diameter: 250 mm (10 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 6.7 Ω
Nominal Power Handling: 250 W
Continuous Power Handling: 500 W
Sensitivity: 97 dB
Voice Coil Diameter: 64 mm (2.5 in)
Winding Material: Copper
Former Material: Kapton
Winding Depth: 15 mm (0.59 in)
Magnetic Gap Depth: 9 mm (0.35 in)
Flux Density: 1.1 T
Woofer Cone Treatment: WP Waterproof Front Side
Specifications HF Unit
Nominal Diameter: 250 mm (10 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 7 Ω
Nominal Power Handling: 80 W
Continuous Power Handling: 160 W
Sensitivity: 103 dB
Recommended Crossover: 1.2 kHz
Voice Coil Diameter: 65 mm (2.5 in)
Winding Material: CCAW
Inductance: 0.15 mH
Flux Density: 1.75 T
Diaphragm Material: Titanium
Design
Magnet Material: Neodymium Ring
Woofer Cone Treatment: WP Waterproof Front Side
Parameters
Fs: 68 Hz
Re: 5.6 Ω
Qes: 0.33
Qms: 5.6
Qts: 0.31
Vas: 23 dm³ (0.81 ft³)
Sd: 320 cm² (49.6 in²)
η₀: 2.2 %
Xvar: 5 mm
Mms: 33.5 g
Bl: 15.8 Tm
Le: 1.1 mH
EBP: 206 Hz
Mounting and Shipping Info
Overall Diameter: 261 mm (10.28 in)
Bolt Circle Diameter: 245 mm (9.65 in)
Baffle Cutout Diameter: 233 mm (9.17 in)
Depth: 142 mm (5.59 in)
Flange and Gasket Thickness: 13 mm (0.51 in)
Net Weight: 3.95 kg (8.71 lb)
Shipping Units: 1 pcs
Shipping Weight: 4.85 kg (10.69 lb)
Shipping Box: 360x360x200 mm (14.17×14.17×7.87 in)
Service Kit
HF Replacement Diaphragm: MMD620TN8M
LF Recone Kit: RCK10CXN648
Cone
Gasket
Centering Shims
