10″ B&C CLX64

General

Nominal Diameter: 250 mm (10 in)
Nominal Impedance: 8 Ω
Frequency Range: 70 Hz – 18000 Hz

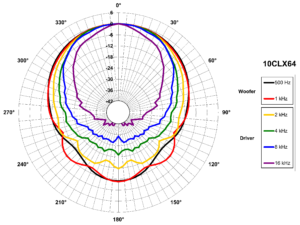

Dispersion Angle: 70 °

Specifications LF Unit

Nominal Diameter: 250 mm (10 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 6.5 Ω
Nominal Power Handling: 250 W
Continuous Power Handling: 500 W
Sensitivity: 94 dB
Voice Coil Diameter: 64 mm (2.5 in)
Winding Material: Copper
Former Material: Glass Fibre
Winding Depth: 14.5 mm (0.57 in)
Magnetic Gap Depth: 8 mm (0.31 in)
Flux Density: 0.9 T
Woofer Cone Treatment: WP Waterproof Front Side

Specifications HF Unit

Nominal Diameter: 250 mm (10 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 8.2 Ω
Nominal Power Handling: 70 W
Continuous Power Handling: 140 W
Sensitivity: 105 dB
Recommended Crossover: 1.2 kHz
Voice Coil Diameter: 51 mm (2 in)
Winding Material: Aluminium
Inductance: 0.14 mH
Flux Density: 1.6 T
Diaphragm Material: HT Polymer

Design

Magnet Material: Neodymium Ring
Woofer Cone Treatment: WP Waterproof Front Side

Parameters

Fs: 70 Hz
Re: 5.6 Ω
Qes: 0.67
Qms: 9.8
Qts: 0.63
Vas: 21 dm³ (0.74 ft³)
Sd: 320 cm² (49.6 in²)
η₀: 1.1 %
Xvar: 5.5 mm
Mms: 36 g
Bl: 11.4 Tm
Le: 0.91 mH
EBP: 104 Hz

Mounting and Shipping Info

Overall Diameter: 258 mm (10.16 in)
Bolt Circle Diameter: 245 mm (9.65 in)
Baffle Cutout Diameter: 231 mm (9.09 in)
Depth: 141 mm (5.55 in)
Flange and Gasket Thickness: 9 mm (0.37 in)
Net Weight: 3.1 kg (6.83 lb)
Shipping Box: NaN in

Service Kit

HF Replacement Diaphragm: MMD5508
LF Recone Kit: RCK10CLX648
Cone
Gasket
Dust Cap
Wooterprof Treatment
Centering Shims
