0.75″ B&C WG7
Wave guide horn not sold separately
Available exclusively with 4.8+2.8 mm fast-on terminal tab
Key Features
- Line Array optimized Waveguide with two DE7 drivers
- 150° max horizontal coverage
- 40 W continuous program power capacity
- 25 mm (1 in) aluminium voice coil
- Mylar diaphragm

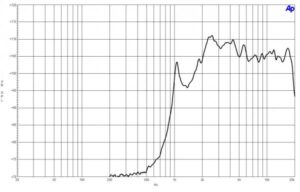

- 2000 – 18000 Hz response
- 107 dB sensitivity
- Compact Neodymium magnet assembly
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications Horn Unit
Nominal Impedance: 4 Ω
Horizontal Coverage: 150 ° Max
Active Radiating Factor: 94.7 %
Specifications HF Unit

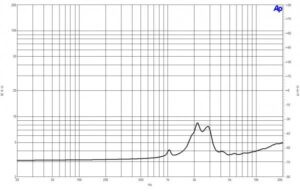

Minimum Impedance: 3.6 Ω
Nominal Power Handling: 20 W
Continuous Power Handling: 40 W
Sensitivity: 107 dB
Frequency Range: 2 kHz – 18 kHz
Min Frequency Range: 2 Hz
Max Frequency Range: 18 Hz
Recommended Crossover: 2 kHz
Voice Coil Diameter: 25 mm (1 in)
Winding Material: Aluminium
Diaphragm Material: Mylar
Flux Density: 1.65 T
Mounting and Shipping Info
Exit Size: 138×19 mm (5.43×0.75 in)
Driver Diameter: 46 mm (1.8 in)
Dimensions: 144x114x80 mm (5.7×4.5×3.2 in)
Net Weight: 0.49 kg (1.07 lb)
Shipping Weight: 0.55 kg (1.2 lb)
Shipping Units: 1 pcs
Shipping Box: 150x130x90 mm (5.91×5.12×3.54 in)
