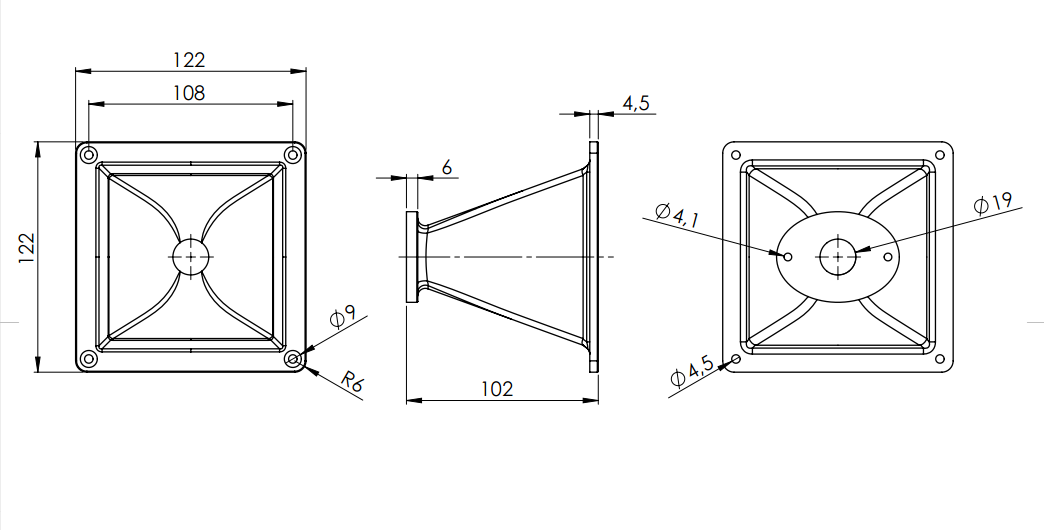

2016_07_29_13_46_28_498_ME7_drawing

0.75″ B&C ME7

0 out of 5
( Atsiliepimų dar nėra. )

Key Features

  • Exponential flare with great directivity control
  • 60° x 40° nominal coverage
  • 3/4″ throat entry
  • Excellent loading down to 2 kHz

Teirautis telefonu

+37069873838

darius@combo.lt

Facebook Twitter Linkedin
Availability: Išankstinis užsakymas Categories , , Tags , , ,

Aprašymas

Specifications

Throat Diameter: 19 mm (0.75 in)
Nominal Coverage Horizontal: 60 °
Nominal Coverage Vertical: 40 °
Cutoff Frequency: 2 kHz
Material: ABS
Dimensions: 122x122x102 mm (4.8×4.8×4 in)

Mounting and Shipping Info

Baffle Cutout Dimension: 102.7 mm (4 in)
Other details: 2x 4.1 mm (0.16 in) holes 180° on 53 mm (2.1 in) diameter
Air Volume Occupied by Driver: 0.1 dm³
Net Weight: 0.11 kg (0.25 lb)
Shipping Units: 1 pcs
Shipping Weight: 0.23 kg (0.51 lb)
Shipping Box: 120x117x110 mm (4.72×4.61×4.33 in)

Specification PDF
