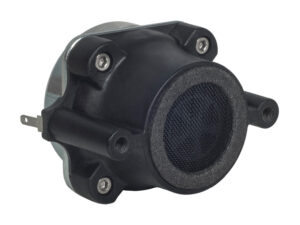

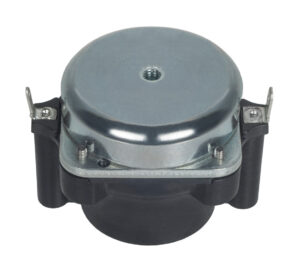

1″ B&C DH350 4Ω|8Ω|16Ω
HLX Series – The Helical Approach
B&C has a reputation for performance, by turning the limits of traditional compression driver design on their head. HLX™ : Compression driver efficiency in miniature. The HLX™ phase plug (US Patent #12149906) has a central channel that is twisted, like DNA, to gain the length required to match the outer channels. This technique works with standard, cost-effective injection mold tooling and plastics by rotating the inner die along a screw profile. The convex dome design, so achieved, has a number of significant cost and performance advantages.
- Minimized diameter, weight, and cost
- lncreased diaphragm area
- Low, ~1kHz Crossover point
- Reduced distortion, especially intermodulation distortion
- More efficient magnetic flux use
Key Features
- Ultra Compact 48mm diameter
- 30 W continuous program power capacity
- 1″ horn throat diameter
- 36 mm (1.4 in) aluminium voice coil
- HT Polymer diaphragm
- 1000 – 17000 Hz response
- 108 dB sensitivity
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Features
Ultra Compact 48mm diameter
30 W continuous program power capacity
1″ horn throat diameter
36 mm (1.4 in) aluminium voice coil
HT Polymer diaphragm
1000 – 17000 Hz response
108 dB sensitivity
Specifications
Throat Diameter: 25 mm (1 in)

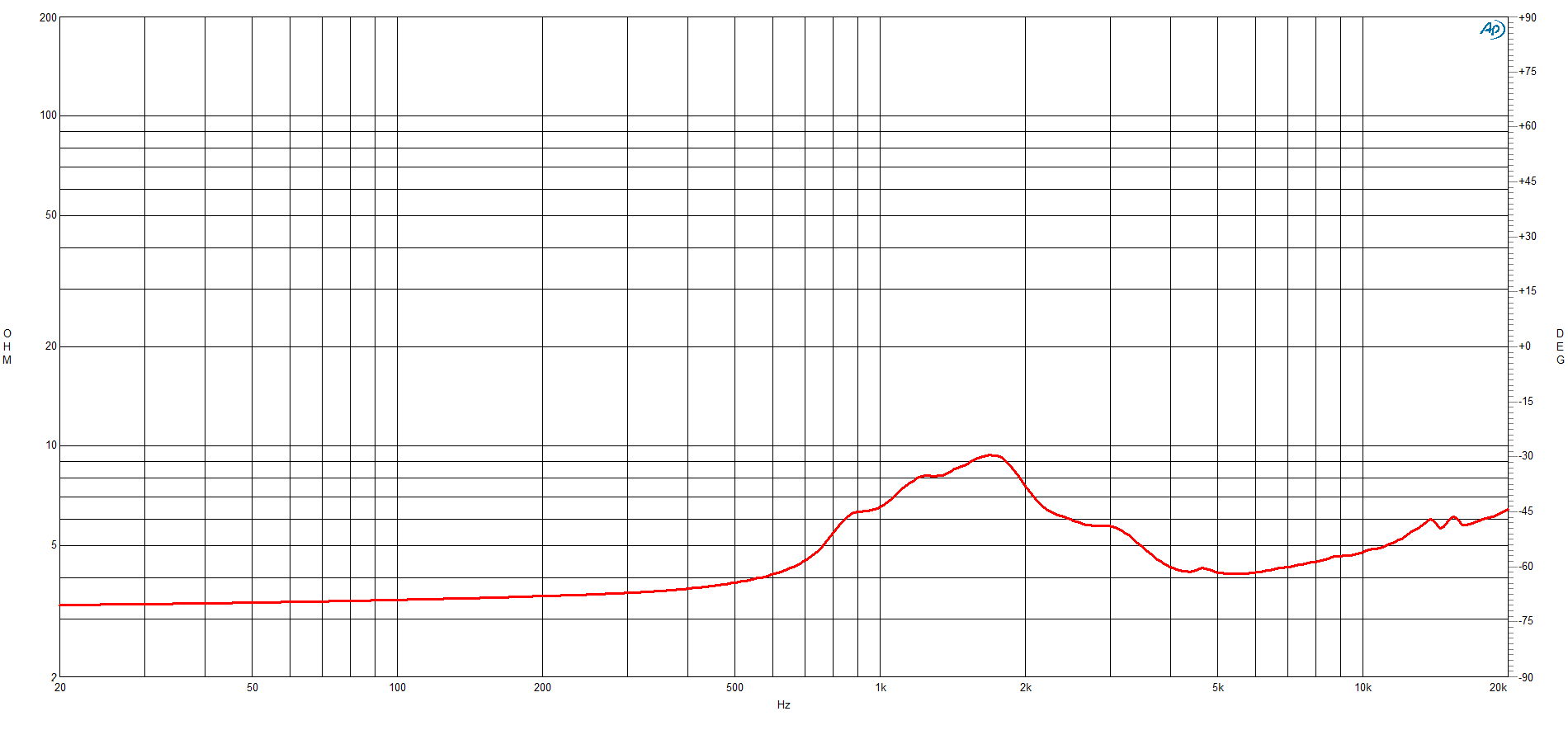

Minimum Impedance: 4.1 Ω
Continuous Power Handling: 30 W

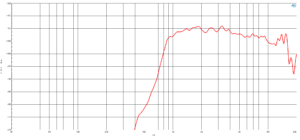

Frequency Range: 1 kHz – 17 kHz
Voice Coil Diameter: 36 mm (1.4 in)
Inductance: 0.06 mH
Diaphragm Material: HT Polymer
Max Frequency Range: 17 Hz
Nominal Impedance: 4 Ω
Nominal Power Handling: 15 W
Sensitivity: 108 dB
Recommended Crossover: 1 kHz
Winding Material: Aluminium
Flux Density: 1.8 T
Min Frequency Range: 1 Hz

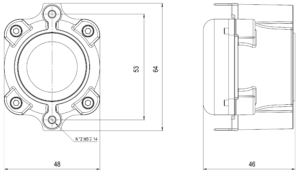

Mounting and Shipping Info
Mounting: Two M5 holes 180° on 53 mm (2.09 in) diameter
Driver Diameter: 64 mm (2.52 in) across mounting studs
Overall Diameter: 48 mm (1.89 in)
Net Weight: 0.25 kg (0.56 lb)
Shipping Weight: 0.275 kg (0.61 lb)
Depth: 46 mm (1.81 in)
Shipping Units: 1 pcs
Shipping Box: 105x105x65 mm (4.1×4.1×2.6 in)
Service Kit
Replacement Diaphragm: MMDDH3504
