1.3″ B&C DE910
Key Features
- 160 W continuous program power capacity
- 1.3″ horn throat diameter
- 75 mm (3 in) aluminium voice coil
- Composite Polyester/Titanium diaphragm
- 500-18000 Hz response
- 109.5 dB sensitivity
- Neodymium magnet assembly with shorting copper cap
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Throat Diameter: 33 mm (1.3 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 8.3 Ω
Nominal Power Handling: 80 W
Continuous Power Handling: 160 W
Sensitivity: 109.5 dB
Frequency Range: 1 kHz – 18 kHz
Recommended Crossover: 1.2 kHz
Voice Coil Diameter: 75 mm (3 in)
Winding Material: Aluminium
Inductance: 0.14 mH
Flux Density: 2.05 T
Diaphragm Material: Titanium
Min Frequency Range: 1 Hz
Max Frequency Range: 18 Hz
Mounting and Shipping Info

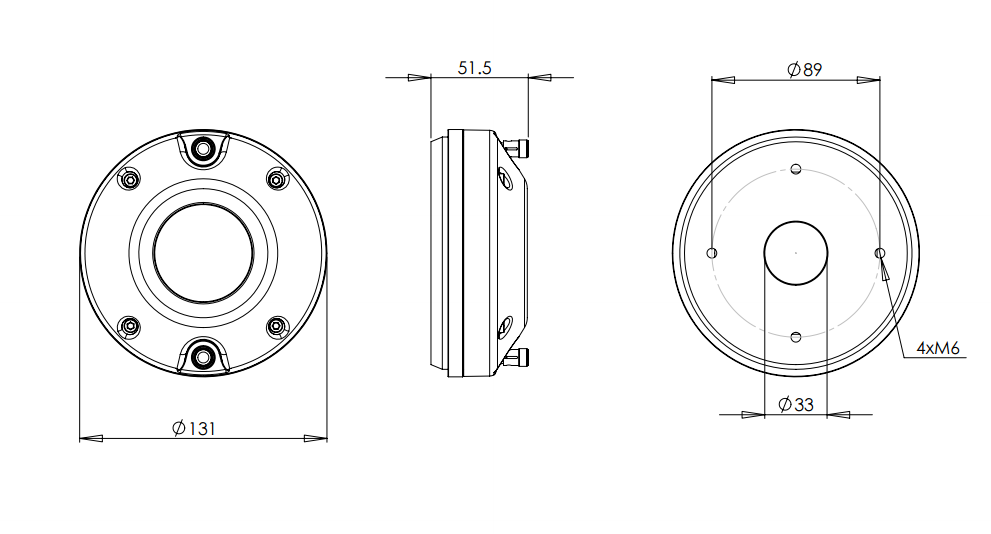

Mounting: Four M6 holes 90° on 102 mm (4 in) diameter
Overall Diameter: 131 mm (5.15 in)
Depth: 52 mm (2 in)
Net Weight: 2.4 kg (5.29 lb)
Shipping Units: 1 pcs
Shipping Weight: 2.45 kg (5.4 lb)
Shipping Box: 140x135x62 mm (5.51×5.31×2.44 in)
Service Kit
HF Replacement Diaphragm: MMD3B8M
