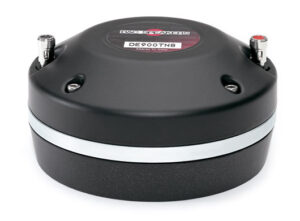

1.4″ B&C DE900TN
Key Features
- 220 W continuous program power capacity
- 1.4″ horn throat diameter
- 75 mm (3 in) aluminium voice coil
- Titanium diaphragm
- 500 – 18000 Hz response
- 108.5 dB sensitivity
- Neodymium magnet assembly with shorting copper cap
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Throat Diameter: 36 mm (1.4 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 7.8 Ω
Nominal Power Handling: 110 W
Continuous Power Handling: 220 W
Sensitivity: 108.5 dB
Frequency Range: 1 kHz – 18 kHz
Recommended Crossover: 1.2 kHz
Voice Coil Diameter: 75 mm (3 in)
Winding Material: Aluminium
Inductance: 0.14 mH
Flux Density: 2.05 T
Diaphragm Material: Titanium
Min Frequency Range: 1 Hz
Max Frequency Range: 18 Hz
Mounting and Shipping Info
Mounting: Four M6 holes 90° on 102 mm (4 in) diameter
Overall Diameter: 131 mm (5.2 in)
Depth: 65 mm (2.6 in)
Net Weight: 2.55 kg (5.62 lb)
Shipping Units: 1 pcs
Shipping Weight: 3 kg (6.61 lb)
Shipping Box: 140x140x70 mm (5.51×5.51×2.76 in)
Service Kit
hf Replacement Diaphragm: MMD3BTN8M
