1.4″ B&C DE602

0 out of 5
( Atsiliepimų dar nėra. )

Key Features

  • 160 W continuous program power capacity
  • 1.4″ horn throat diameter
  • 65 mm (2.5 in) aluminium voice coil
  • Titanium diaphragm
  • 1000 – 18000 Hz response
  • 108 dB sensitivity
  • Shorting copper cap for extended HF response

Teirautis telefonu

+37069873838

darius@combo.lt

Facebook Twitter Linkedin
Availability: Išankstinis užsakymas Categories , , , Tags , , ,

Aprašymas

Specifications

Throat Diameter: 36 mm (1.4 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 7.6 Ω
Nominal Power Handling: 80 W
Continuous Power Handling: 160 W
Sensitivity: 108 dB
Frequency Range: 1 kHz – 18 kHz
Recommended Crossover: 1.2 kHz
Voice Coil Diameter: 65 mm (2.5 in)
Winding Material: Aluminium
Inductance: 0.15 mH
Flux Density: 1.55 T
Diaphragm Material: Titanium
Min Frequency Range: 1 Hz
Max Frequency Range: 18 Hz

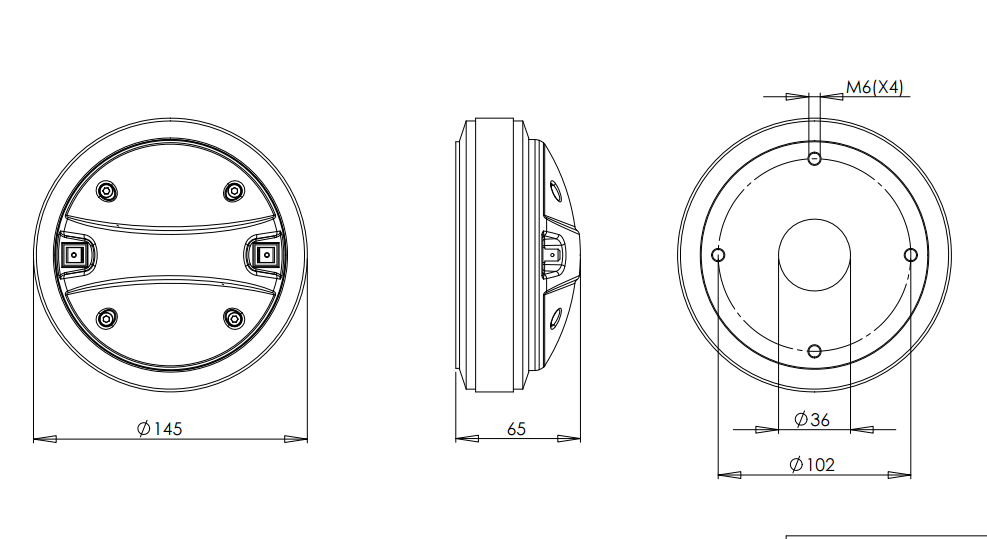

Mounting and Shipping Info

Mounting: Four M6 holes 90° on 102 mm (4 in) diameter
Overall Diameter: 145 mm (5.7 in)
Depth: 65 mm (2.5 in)
Net Weight: 3.4 kg (7.5 lb)
Shipping Units: 1 pcs
Shipping Weight: 3.52 kg (7.76 lb)
Shipping Box: 190x190x80 mm (7.48×7.48×3.15 in)

Service Kit

hf Replacement Diaphragm: MMD6108

Specification PDF
