1″ B&C DE550TN 8Ω|16Ω

Specifications

Throat Diameter: 25 mm (1 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 8.4 Ω
Nominal Power Handling: 70 W
Continuous Power Handling: 140 W
Sensitivity: 108 dB
Frequency Range: 1 kHz – 17 kHz
Recommended Crossover: 1.2 kHz
Voice Coil Diameter: 51 mm (2 in)
Winding Material: Aluminium
Inductance: 0.12 mH
Flux Density: 2 T
Diaphragm Material: Titanium
Min Frequency Range: 1 Hz
Max Frequency Range: 17 Hz

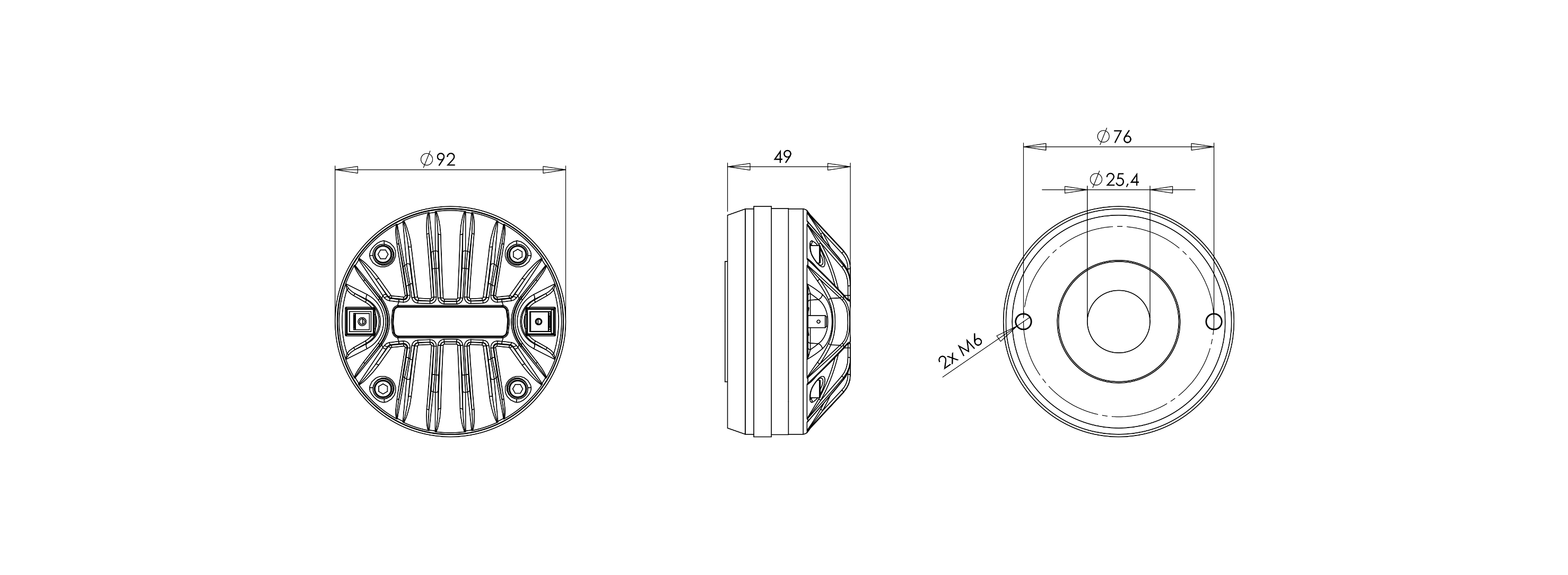

Mounting and Shipping Info

Mounting: Two M6 holes 180° on 76 mm (3 in) diameter
Overall Diameter: 92 mm (3.62 in)
Depth: 49 mm (1.93 in)
Net Weight: 1.17 kg (2.58 lb)
Shipping Units: 1 pcs
Shipping Weight: 1.2 kg (2.65 lb)
Shipping Box: 105x105x65 mm (4.13×4.13×2.56 in)
