0.5″ B&C DE5 8Ω|16Ω
Available exclusively with 4.8+2.8 mm fast-on terminal tab
Key Features
- 20 W continuous program power capacity
- 25 mm (1 in) aluminium voice coil
- 1/2″ horn throat diameter
- Mylar diaphragm

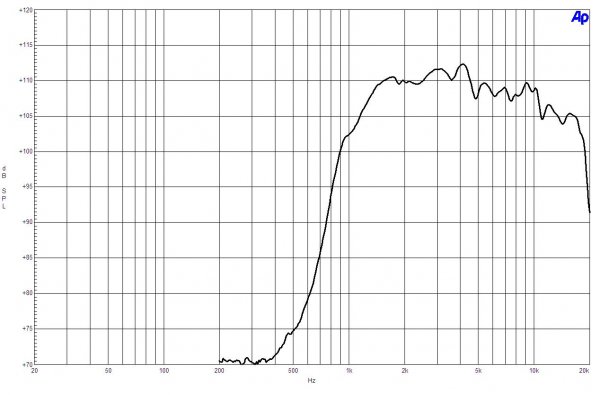

- 1500 – 18000 Hz response
- 109 dB sensitivity
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Throat Diameter: 13 mm (0.5 in)
Minimum Impedance: 6.7 Ω
Continuous Power Handling: 20 W
Frequency Range: 2 kHz – 18 kHz
Voice Coil Diameter: 25 mm (1 in)
Inductance: 0.1 mH
Diaphragm Material: Mylar
Max Frequency Range: 18 Hz
Nominal Impedance: 8 Ω
Nominal Power Handling: 10 W
Sensitivity: 109 dB
Recommended Crossover: 2.5 kHz
Winding Material: Aluminium
Flux Density: 1.65 T
Min Frequency Range: 2 Hz
Mounting and Shipping Info

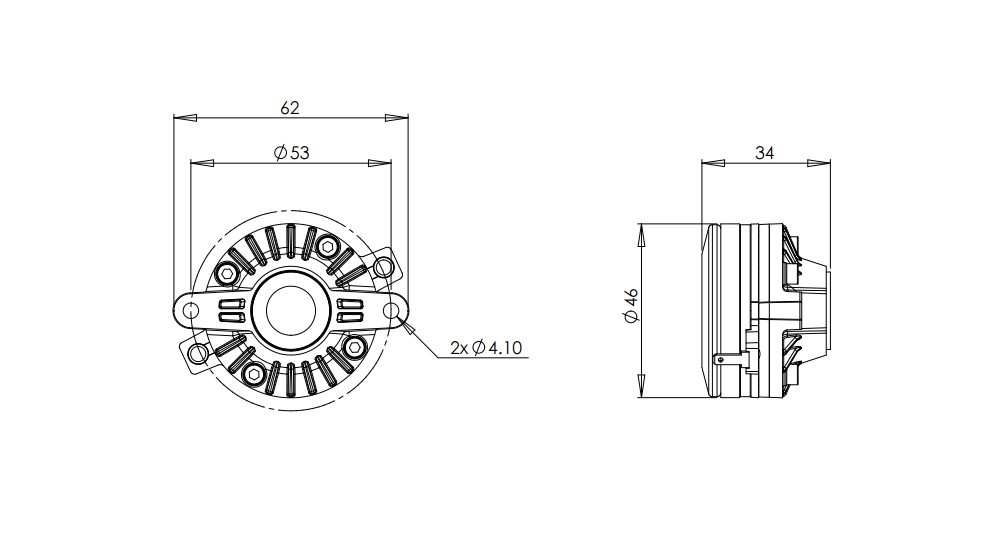

Mounting: Two M4 holes 180° on 53 mm (2.1 in) diameter
Overall Diameter: 62 mm (2.44 in)
Net Weight: 0.17 kg (0.37 lb)
Shipping Weight: 0.18 kg (0.4 lb)
Depth: 34 mm (1.33 in)
Shipping Units: 1 pcs
Shipping Box: 65x55x40 mm (2.56×2.17×1.57 in)
Service Kit
HF Replacement Diaphragm: MMDDE58
