1″ B&C DE400TN 8Ω|16Ω
Key Features
- 100 W continuous program power capacity
- 1′ horn throat diameter
- 44 mm (1.7 in) aluminium voice coil
- Titanium diaphragm
- 1200 – 18000 Hz response
- 106 dB sensitivity
- Compact Neodymium magnet assembly
- Shorting copper cap for extended HF response
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Throat Diameter: 25 mm (1 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 7.7 Ω
Nominal Power Handling: 50 W
Continuous Power Handling: 100 W
Sensitivity: 106 dB

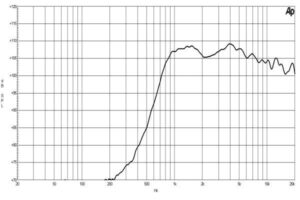

Frequency Range: 1.2 kHz – 18 kHz
Recommended Crossover: 1.5 kHz
Voice Coil Diameter: 44 mm (1.7 in)
Winding Material: Aluminium
Inductance: 0.11 mH
Flux Density: 1.8 T
Diaphragm Material: Titanium
Min Frequency Range: 1.2 Hz
Max Frequency Range: 18 Hz

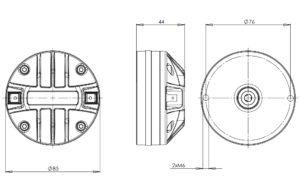

Mounting and Shipping Info
Mounting: Two M6 holes 180° on 76 mm (3 in) diameter
Overall Diameter: 85 mm (3.3 in)
Depth: 44 mm (1.7 in)
Net Weight: 0.86 kg (1.88 lb)
Shipping Units: 1 pcs
Shipping Weight: 0.89 kg (1.95 lb)
Shipping Box: 105x105x65 mm (4.13×4.13×2.56 in)
Service Kit
Replacement Diaphragm: MMD400TN8
