1″ B&C DE36 8Ω|16Ω
As the newest ring radiator offering from B&C speakers, the DE36 features a ketone polymer diaphragm with a ferrite magnet motor. Extensive FEA modeling and physical testing over the last several years has culminated in these 1.5 inch (38mm) coil ring drivers with outstanding sensitivity, high frequency extension, and compactness. A practical recommended crossover point of 1.8kHz and sensitivity of 108dB in the DE36 allows for a wide range of applications, including compact two way boxes and line arrays.
Key Features
- 70 W continuous program power capacity
- 1″ horn throat diameter
- 38 mm (1.5 in) aluminum voice coil
- 1200 – 20000 Hz response
- 108 dB sensitivity
- Annular HT polymer diaphragm
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Throat Diameter: 25 mm (1 in)
Minimum Impedance: 12.7 Ω
Continuous Power Handling: 70 W
Frequency Range: 1.2 kHz – 20 kHz
Voice Coil Diameter: 38 mm (1.5 in)
Inductance: 0.08 mH
Diaphragm Material: HT Polymer
Max Frequency Range: 20 Hz
Nominal Impedance: 16 Ω
Nominal Power Handling: 35 W
Sensitivity: 108 dB
Recommended Crossover: 1.8 kHz
Winding Material: Aluminium
Flux Density: 1.6 T
Min Frequency Range: 1.2 Hz

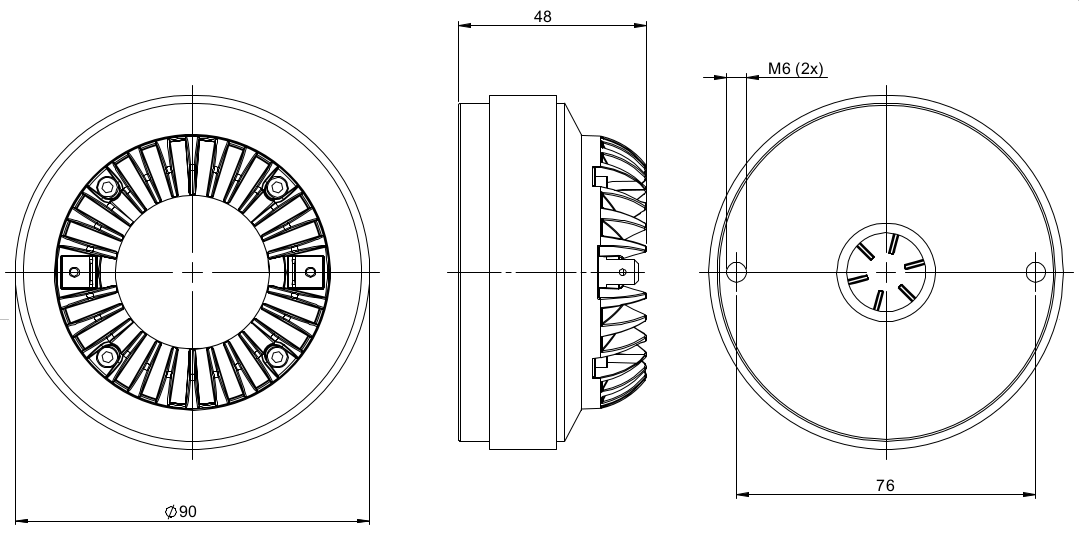

Mounting and Shipping Info
Mounting: Two M6 holes 180° on 76 mm (3 in) diameter
Overall Diameter: 90 mm (3.54 in)
Net Weight: 1.1 kg (2.43 lb)
Shipping Weight: 1.13 kg (2.48 lb)
Depth: 48 mm (1.89 in)
Shipping Units: 1 pcs
Shipping Box: 105x105x65 mm (4.13×4.13×2.56 in)
