B&C DE12
B&C DE12

1″ B&C DE12

0 out of 5
( Atsiliepimų dar nėra. )

Key Features

  • 50 W continuous program power capacity
  • 1″ horn throat diameter
  • 36 mm (1.4 in) aluminium voice coil
  • Polyester diaphragm
  • 1500 – 18000 Hz response
  • 106 dB sensitivity

Teirautis telefonu

+37069873838

darius@combo.lt

Facebook Twitter Linkedin
Availability: Išankstinis užsakymas Categories , , , Tags , , ,

Aprašymas

SPECIFICATIONS
Throat Diameter 1” / 25mm
Impedance 8 ohms
RMS Power Rating 25 Watts
Program Power 50 Watts

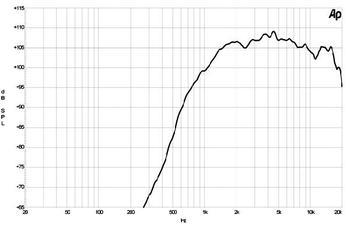

Frequency Response 1.5kHz – 18kHz
Recommended Crossover 2.2kHz
Sensitivity (1W/1m) 106dB
Voice Coil Diameter 1.4″ / 36mm
Winding Material Aluminum
Inductance 0.14mH
Diaphragm Material Mylar
Flux Density 1.45T
MOUNTING INFORMATION
Overall Diameter 3.54″ / 90mm
Mounting Holes (2) M5 holes on 180°- 3″ Dia.
Depth 2″ / 49mm
Net Weight 2.2 lbs./ 1 kg.

Specification PDF
