1″ B&C DE110 8Ω|16Ω

Specifications

Throat Diameter: 25 mm (1 in)
Minimum Impedance: 8 Ω
Continuous Power Handling: 50 W
Frequency Range: 2 kHz – 18 kHz
Voice Coil Diameter: 36 mm (1.4 in)
Inductance: 0.14 mH
Diaphragm Material: HT Polymer
Max Frequency Range: 18 Hz
Nominal Impedance: 8 Ω
Nominal Power Handling: 25 W
Sensitivity: 106 dB
Recommended Crossover: 2 kHz
Winding Material: Aluminium
Flux Density: 1.8 T
Min Frequency Range: 2 Hz

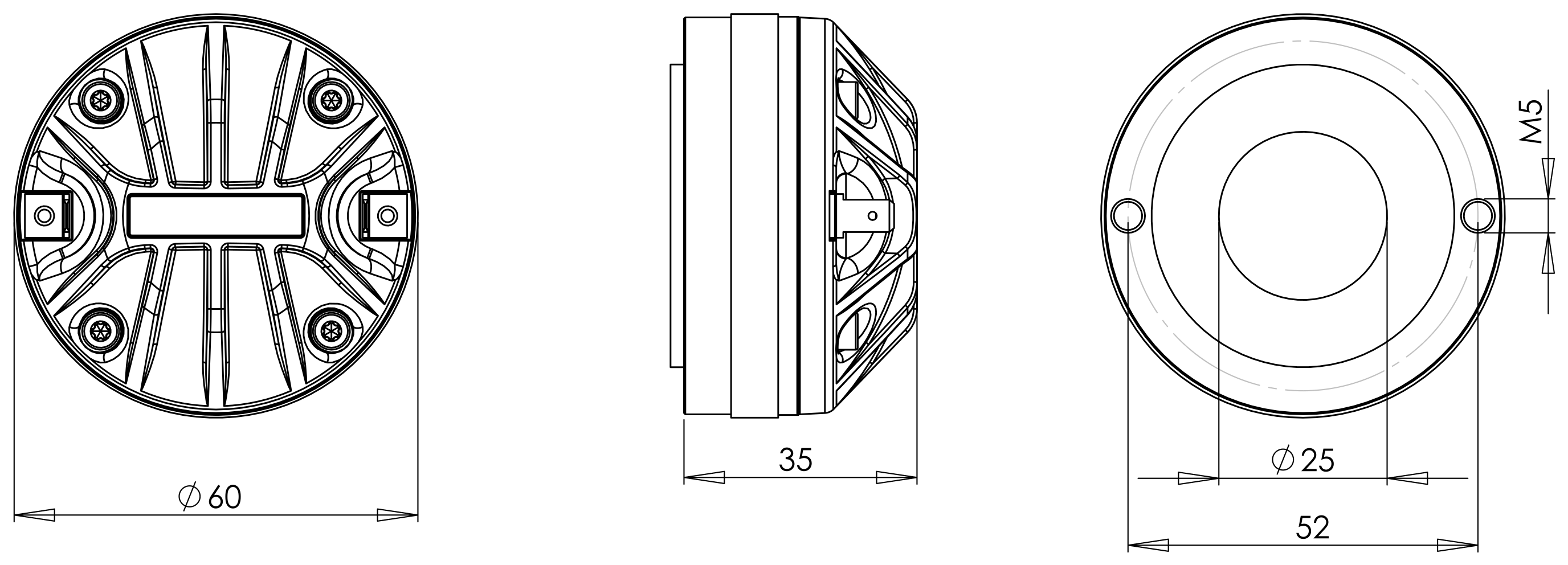

Mounting and Shipping Info

Mounting: Two M5 holes 180° on 52 mm (2.05 in) diameter
Overall Diameter: 60 mm (2.36 in)
Net Weight: 0.32 kg (0.71 lb)
Shipping Weight: 0.35 kg (0.76 lb)
Depth: 35 mm (1.38 in)
Shipping Units: 1 pcs
Shipping Box: 105x105x65 mm (4.13×4.13×2.56 in)

Service Kit

HF Replacement Diaphragm: MMDDE1108
