B&C DE10
B&C DE10

1″ B&C DE10

0 out of 5
( Atsiliepimų dar nėra. )

Key Features

  • 40 W continuous program power capacity
  • 1″ horn throat diameter
  • 25 mm (1 in) aluminium voice coil
  • Polyester diaphragm
  • 1500 – 18000 Hz response
  • 107 dB sensitivity

Teirautis telefonu

+37069873838

darius@combo.lt

Facebook Twitter Linkedin
Availability: Išankstinis užsakymas Categories , , , Tags , , ,

Aprašymas

SPECIFICATIONS
Throat Diameter 1” / 25mm
Impedance 8 ohms
RMS Power Rating 20 Watts
Program Power 40 Watts

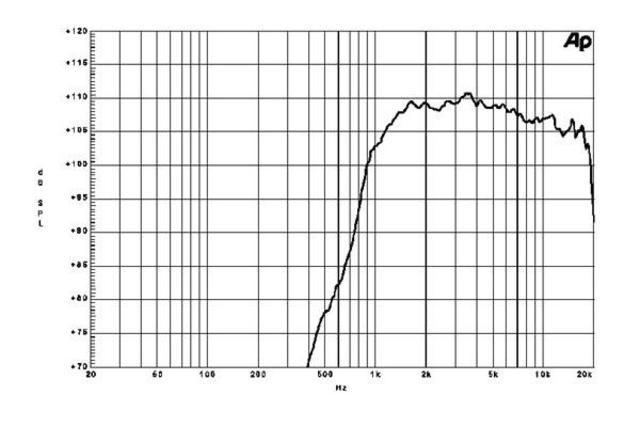

Frequency Response 1.5kHz – 18kHz
Recommended Crossover 2.5kHz
Sensitivity (1W/1m) 107dB
Voice Coil Diameter 1″ / 25mm
Winding Material Aluminum
Inductance 0.1mH
Diaphragm Material Mylar
Flux Density 1.6T
MOUNTING INFORMATION
Overall Diameter 4.4” / 90mm
Mounting Holes (2) M5 holes on 180°- 3″ Dia.
Depth 2.1″ / 53mm
Net Weight 2.1 lbs./ .95 kg.

Specification PDF
