1.4″ B&C WG148-354 8Ω|16Ω

0 out of 5
( Atsiliepimų dar nėra. )

Key Features

  • Line Array optimized Waveguide with DCX354-8 driver
  • Time coherent coaxial ring radiator design
  • 120° max horizontal coverage
  • 110.1 dB sensitivity
  • 180 W continuous program power capacity
  • Neodymium magnet assembly

Teirautis telefonu

+37069873838

darius@combo.lt

Facebook Twitter Linkedin
Availability: Išankstinis užsakymas Categories , , , Tags , , , ,

Aprašymas

Specifications Horn Unit

Nominal Impedance: 8 Ω
Horizontal Coverage: 120 ° Max
Active Radiating Factor: 93.3 %

Specifications MF Unit

Minimum Impedance: 7.9 Ω
Nominal Power Handling: 90 W
Continuous Power Handling: 180 W
Sensitivity: 108.7 dB
Frequency Range: 0.4 kHz – 6 kHz
Min Frequency Range: 0.4 Hz
Max Frequency Range: 6 Hz
Recommended Crossover: 0.4 kHz
Voice Coil Diameter: 76 mm (3 in)
Winding Material: Aluminium
Inductance: 0.26 mH
Flux Density: 1.93 T
Diaphragm Material: HT Polymer Ring

Specifications HF Unit

Minimum Impedance: 6.5 Ω
Nominal Power Handling: 50 W
Continuous Power Handling: 100 W
Sensitivity: 110.1 dB
Frequency Range: 5 kHz – 20 kHz
Min Frequency Range: 5 Hz
Max Frequency Range: 20 Hz
Recommended Crossover: 4.5 kHz
Voice Coil Diameter: 51 mm (2 in)
Winding Material: Aluminium
Inductance: 0.1 mH
Flux Density: 1.96 T
Diaphragm Material: HT Polymer Ring

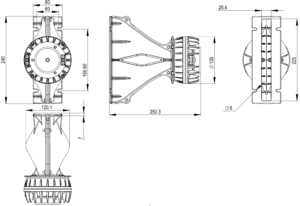

Mounting and Shipping Info

Exit Size: 225×25.6 mm (8.9×1 in)
Driver Diameter: 130 mm (5.12 in)
Dimensions: 250.3x240x120.1 mm (9.85×9.45×4.73 in)
Net Weight: 3.28 kg (7.23 lb)

Specification PDF
