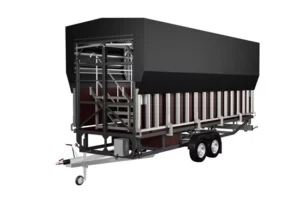

Profiled M48 mobile stage 8x6x5m
ALSPAW have chosen to adhere to the highest and newest European Directives, specifications and standards in order to provide a safe and high quality product of product quality. All our products comply with the strictest international standards according to the latest standards of Eurocode 0, Eurocode 1, Eurocode 3 Eurocode 9. We think ahead updating all regulations and implementing certain provisions into our products. All accessories and additional elements should be transported separately on the truck.
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Technical Data
Type of roof: profiled
Dimensions as a stage: 8.0 m x 6.0 m x 5.0 m
Dimensions as a trailer: 9.4 m x 2.45 m x 3.6 m
Permitted total weight: 2500 kg / 3000 kg / 3500 kg
Stage area: 48 m²
Height of stage floor: 1.0 – 1.3 m
Stage floor: slip proof, weather proof
Roof capacity: 300 kg uniformly on each arch – total 1200 kg
Floor capacity: 3.5 kN/m² (approx. 350 kg/m²)
Quadrosystem front pillars load capacity: 50 kg
Flying Towers load capacity: 500 kg (in the middle point)
Max. wind speed: Wind zone 1–3 (excluding 5 km coastal areas and islands of the North Sea and the Baltic Sea): max 17.8 m/s with back and sides cover, max 30 m/s without covers
Max. thickness of snow on the roof: Mobile stages should be used only in snow-free periods unless the snow is effectively removed (e.g., with heating devices)
Canopy: PCV certified material (flame resistant)
Scrim: A203 (white or black)
Installation time: 30–60 min (1–2 people)
Equipment
Basic accessories and options:
– PVC canopy for the roof
– Scrim for back and sides (2/3)
– Down covering PVC canopy
– Truss pillars (Q250, 50×2) x 4 pcs
– Standard stairs x 2 pcs
– Rails for 3 sides
– Spare parts
– Manual hydraulic system of lifting up the roof and manual system of leveling the floor (permissible total weight 2500 kg / optionally 3000 kg and 3500 kg)
Additional accessories and options:
– PA Wings (truss structure Q250 with stage platforms)
– PA Wings (truss structure Q250 without stage platforms)
– Flying towers
– PA Speakers
– Ramp (top made of plywood)
– Stage cover
– Scrim side extension till front pillar (1/3) on Velcro – 2 pcs
– Small storage canopy for closing front and back of mobile stage
– Galvanized chassis
– Electric hydraulic lifting up the roof by remote control and manual leveling stage floor (permissible total weight 2500 kg / optionally 3000 kg and 3500 kg)
– Electric hydraulic lifting up the roof by remote control and electric leveling stage floor by remote control (permissible total weight 3000 kg / optionally 3500 kg)
