JB-LIGHTING P12 SPOT

Aprašymas

Optics and light source

• 640 W white light LED module

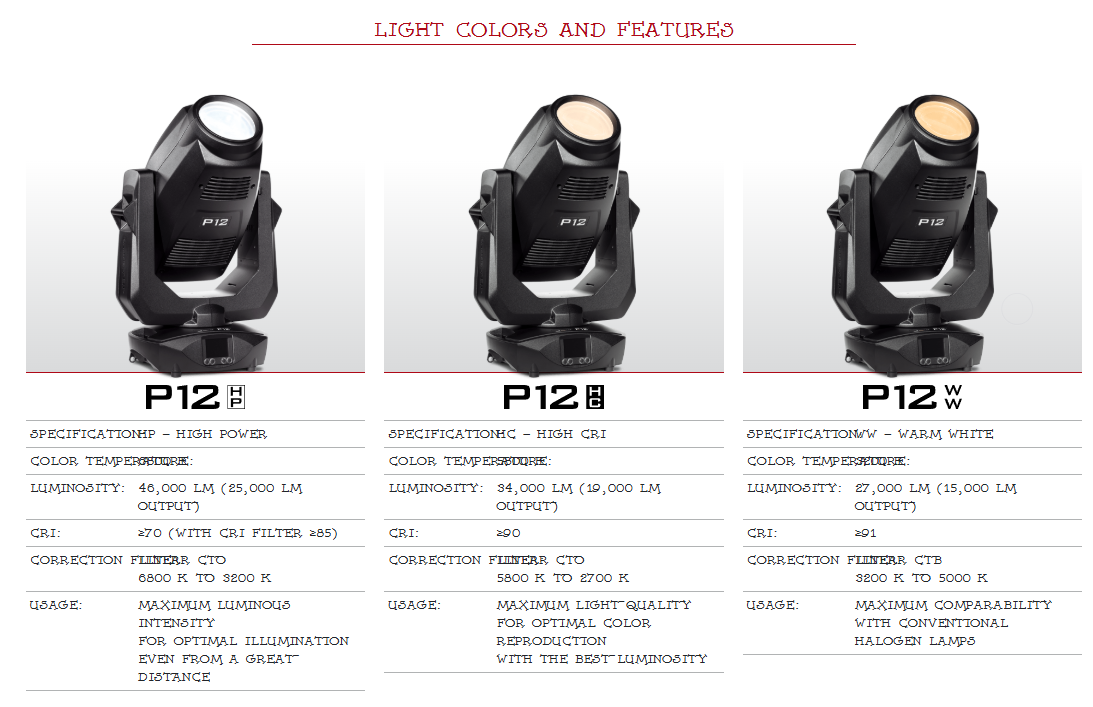

  HP (High Power): 6800 K; 46,000 lm (25,000 lm Output); CRI > 70
  HC (High CRI): 5800 K; 34,000 lm (19,000 lm Output); CRI > 90
• > 20,000 h life time
• Flicker-free operation, camera mode 100 Hz – 3 kHz
• Zoom range: 5.7° – 60° (1:10.5)

Effects

• 2 gobo wheels, each with 6 rotate-, position- and interchangeable gobos + open
• CMY color mixing unit for fast and homogeneous color mixing + linear CTO
• 1 color wheel with 7 full and semi colors + open also linear color selection
• High CRI-Filter
• 2 frost filters (soft edge/flood frost), continuously variable – optional further frost stages possible
• 2 prisms, linear and circular, rotate- and indexable
• Motorised infinitely adjustable high-speed iris
• Electronic dimmer 0 % – 100 %
• Electronic shutter with preprogrammed puls- and ramp functions
• Animation effect / Sparkle effect
• Focus system with auto focus function
• Animation module with endlessly rotating animation wheel

Movement

• 3 phase extra strong stepping motors
• Precise, very fast and silent movement
• 540° pan / 280° tilt

Control

• Protocol: USITT DMX-512, RDM
• Ethernet / Artnet – sACN – Kling-Net
• Wireless DMX / RDM Lumen Radio CRMX TiMo
• Bluetooth, Wifi
• Color touch display with function keys and batterie backup
• Mini USB for software update
• Stand-alone mode
• Master/slave function
• Built-in DMX analyser

Power consumption

• Max. power consumption 800 VA
• Input voltage range 100 V – 240 V, 50/60 Hz

Construction

• Original JB-Lighting slide-in module technology
• Rugged construction
• Transport lock for pan/tilt
• Forced air cooling (temperature regulated, low noise)
• Graphical display, electronically revolvable
• 2 Neutrik etherCON Connectors
• Neutrik 5pin IN/OUT
• Neutrik powerCON TRUE1 IN/OUT
