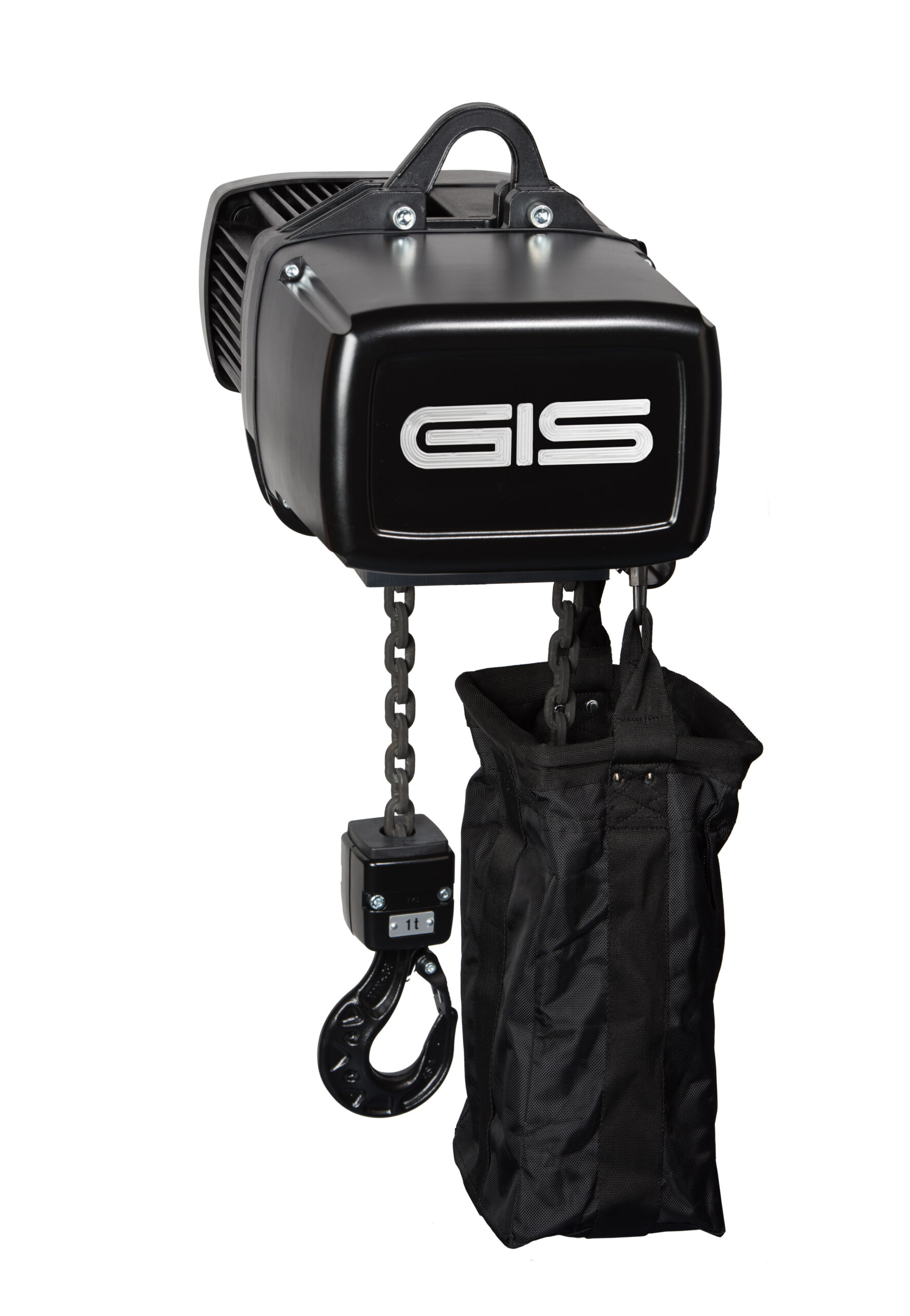

GRANDININIS KELTUVAS LP D8+
LPM250, LP500 – 2500, up to 3200 kg
Reliable and long-lasting
3 year warranty
Safe: Chain safety factor minimum 8-times
Weatherproof: Protection class IP65 as standard
Easy to operate
Usable as stationary or climbing hoist without modification
Quiet running: with 3-step drive and helical gearing
Simple: Polygonal design for an easy maintenance
Customer specific
Different operating and control voltages
Second brake without housing extension
Wide range of accessories and options
Teirautis telefonu
+37069873838
darius@combo.lt
- Description
- Reviews (0)
Description
Technical Specifications – Standard Version
- D8 Plus motor
- In accordance with EN14492-2, SQP2:2024, EN17206, DIN56950-5
- Maximum load capacities:
LPM250: 250 kg,
LP500: 500 kg,
LP1000: 1000 kg,
LP1600: 1600 kg (1 fall) / 3200 kg (2 falls),
LP2500: 2500 kg - Chain safety: Minimum 8:1
- Standard voltages:
3 × 400 V / 50 Hz,
3 × 230 V / 50 Hz,
1 × 115 V / 50 Hz,
1 × 230 V / 50 Hz - 3 phase motor: 1 or 2 lifting speeds
- 1 phase motor: 1 lifting speed
- Control: Direct control
- Protection class: IP65
- Suspension: Eyebolt or hook suspension
- Use: Usable as stationary or climbing hoist
- Isolation class (motor): F
- Material: Housing and cover made of aluminum
- Colour: Housing, chain and equipping parts black
- Brakes: Two independent DC spring-loaded brakes
- Load hook: With interlocking hook lug, dampening system
- Overload protection: Slipping clutch adjustable and not in the flow of forces
- Other properties: Suitable for frequency inverted operation, liquid drain for outdoor use
