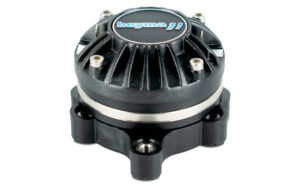

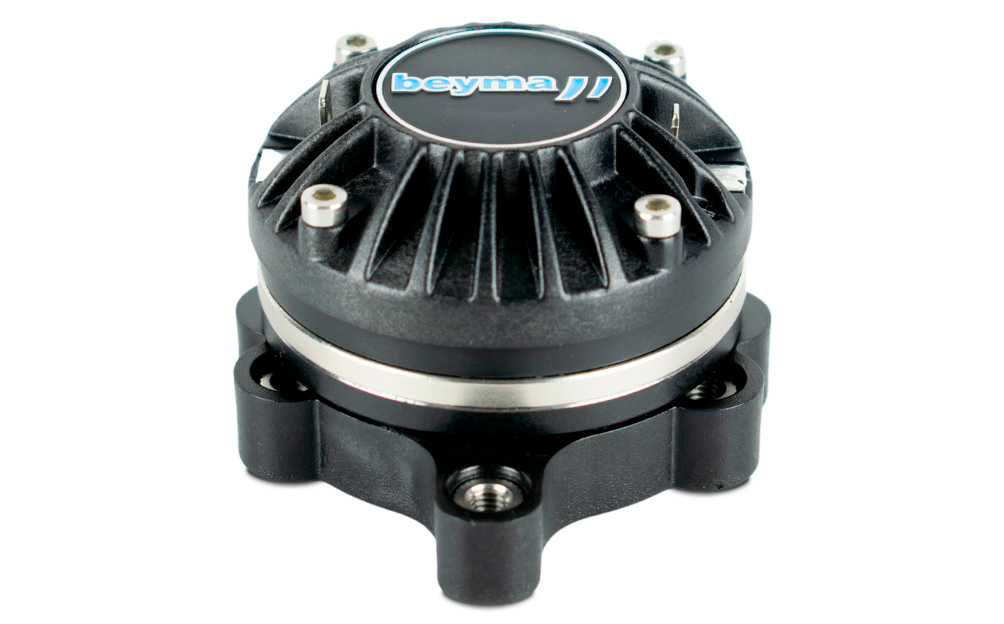

Beyma DRIVER CD-101Nd/PK 8 OH
Key Features
● Next generation high performance 1” (25,4 mm) exit compression driver
● Deplocex® Patent Pending Technology for improved thermal disipation, low power compression losses and high power handling
● 1,1” (28 mm) Copper Clad Aluminum voice coil
● 80 W program power above 2 kHz
● Sensitivity: 110 dB (1W / 1m)
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Technical specifications
Throat diameter 25.4 mm 1 in
Nominal impedance 8 Ohm
Minimum impedance 7.2 ohm
Re 6 ohm
Power capacity 40 W AES above de 2 kHz
Program power 80 W above 2 kHz
Sensitivity 110 dB 1W / 1m @ ZN coupled to horn TD-164
Frequency range 2000-20000 Hz
Recom. crossover frequency 2 kHz or higher (12dB/oct min slope)
Voice coil diameter 28 mm 1.1 in
Flux density 1.8 T
BL factor 3 N/A
Diaphragm material High Temperature Polymer
Construction details
External diameter 90.4 mm 3.55 in
Depth 44 mm 1.7 in
Mounting Three M5 threaded holes. 120º apart on 57 mm (2.24 in) diameter circle. Two M5 threaded holes. 180º apart on 6.2 mm (3 in) diameter circle.
Net weight 0.3 kg 0.7 lb
Total weight 0.6 kg 1.32 lb
Magnet Neodymium
