| SPECIFICATIONS |
| Nominal Basket Diameter |
15” / 320mm |

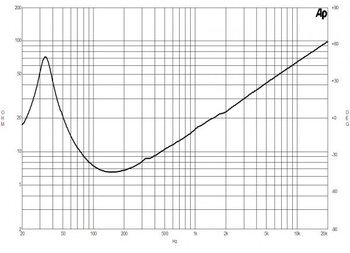

| Impedance |
8 ohms |
| RMS Power Rating |
700 Watts |
| Program Power |
1,400 Watts |

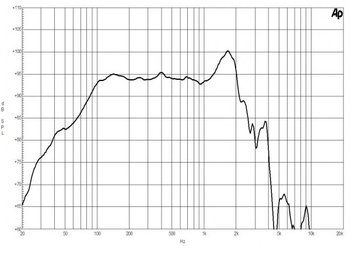

| Frequency Response |
35Hz – 1.0kHz |
| Sensitivity (1W/1m) |
94.5dB |
| Voice Coil Diameter |
4” / 100mm |
| Winding Material |
Copper |
| Former Material |
Glass Fibre |
| Winding Depth |
.83″ / 21mm |
| Magnetic Gap Depth |
.4″ / 10.5mm |
| Flux Density |
1.05T |
| MOUNTING INFORMATION |
| Overall Diameter |
15.5″ / 394mm |
| Bolt Circle Diameter |
14.6″ / 374mm |
| Baffle Cutout Diameter |
13.9” / 355mm |
| Depth |
6.7″ / 170mm |
| Flange & Gasket Thickness |
.625″ / 16mm |
| No. Of Mounting Holes |
8 |
| Net Weight |
21.5 lbs./ 9.8 kg. |
| THIELE-SMALL PARAMETERS |
| Resonant Frequency (fs) |
33 Hz |
| Impedance (Re) |
5.3 ohms |
| Electrical Factor(Qes) |
.33 |
| Mechanical Q (Qms) |
4.8 |
| Total Q (Qts) |
.31 |
| Compliance Equiv. Vol. (Vas) |
152 Liters/5.3cu. ft. |
| Voice Coil Overhang (Xmax) |
8.0mm |
| Reference Efficiency |
1.8% |
| BL Factor |
22.5 T-M |
| Coil Inductance (Le) |
2.1mH |
