B&C 12PS100
€0.00
- 1400 W continuous program power capacity
- 100 mm (4 in) copper voice coil
- 45 – 1000 Hz response
- 93 dB sensitivity
- Double silicone spider with optimized compliance
- Aprašymas
- Atsiliepimai (0)
Aprašymas
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
12” / 320mm |
|
Impedance |
4 or 8 ohms |
|
AES Power Rating |
700 Watts |
| Program Power | 1,400 Watts |
|

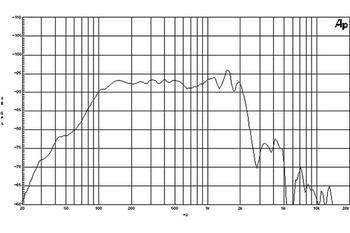

Frequency Response |
45Hz – 1.0kHz |
|
Sensitivity (1W/1m) |
93dB |
|
Voice Coil Diameter |
4″ / 100mm |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | .83″ / 21mm |
| Magnetic Gap Depth | .4″ / 10.5mm |
| Flux Density | 1.05T |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.56″ / 319mm |
| Bolt Circle Diameter | 11.8″ / 299mm |
| Baffle Cutout Diameter | 11.1″ / 282mm |
| Depth | 4.7″ / 120mm |
| Flange & Gasket Thickness | .625″ / 16mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 19.4 lbs./ 8.8 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
44 Hz |
| Impedance (Re) | 5.3 ohms |
| Electrical Factor(Qes) | .29 |
| Mechanical Q (Qms) | 3.9 |
| Total Q (Qts) | .27 |
| Compliance Equiv. Vol. (Vas) | 47 Liters/1.6cu. ft. |
| Voice Coil Overhang (Xmax) | 8.0mm |
| Reference Efficiency | 1.3% |
| BL Factor | 22.5 T-M |
| Coil Inductance (Le) | 2.0mH |
