B&C 12PE32
€0.00
- 500 W continuous program power capacity
- 64 mm (2.5 in) aluminium voice coil
- 50 – 4000 Hz response
- 101 dB sensitivity
- Aprašymas
- Atsiliepimai (0)
Aprašymas
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
12” / 320mm |
|
Impedance |
8 ohms |
|
RMS Power Rating |
250 Watts |
| Program Power | 500 Watts |
|

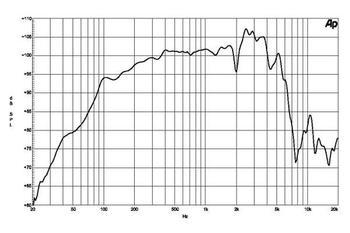

Frequency Response |
50Hz – 4.0kHz |
|
Sensitivity (1W/1m) |
101.5dB |
|
Voice Coil Diameter |
2.5″ / 65mm |
| Winding Material | Aluminum |
| Former Material | Glass Fibre |
| Winding Depth | .5″ / 12mm |
| Magnetic Gap Depth | .28″ / 7mm |
| Flux Density | 1.4T |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.4″ / 316mm |
| Bolt Circle Diameter | 11.6″ / 296mm |
| Baffle Cutout Diameter | 11.1″ / 282mm |
| Depth | 5.3” / 134mm |
| Flange & Gasket Thickness | .625″ / 16mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 16.7 lbs./ 7.6 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
51 Hz |
| Impedance (Re) | 5.8 ohms |
| Electrical Factor(Qes) | .19 |
| Mechanical Q (Qms) | 7.6 |
| Total Q (Qts) | .18 |
| Compliance Equiv. Vol. (Vas) | 100.82 Liters/3.56cu. ft. |
| Voice Coil Overhang (Xmax) | 2.8mm |
| Reference Efficiency | 3.8% |
| BL Factor | 19.1 T-M |
| Coil Inductance (Le) | 1.2mH |
