10″ B&C Woofer NDL64
Key Features
- 500 W continuous program power capacity
- 64 mm (2.5 in) aluminium voice coil
- 50 – 3000 Hz response
- 97 dB sensitivity
- Neodymium magnet allows a very light yet powerful motor assembly
- Ventilated voice coil gap for reduced power compression
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
| SPECIFICATIONS | |
| Nominal Basket Diameter | 10” / 250mm |
| Impedance | 8 ohms |
| RMS Power Rating | 250 Watts |
| Program Power | 500 Watts |

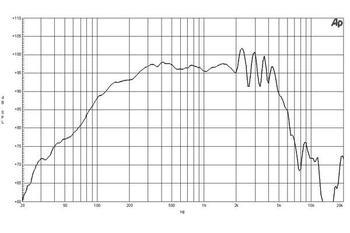

| Frequency Response | 50Hz – 3kHz |
| Sensitivity (1W/1m) | 97dB |
| Voice Coil Diameter | 2.5” / 64mm |
| Winding Material | Aluminum |
| Former Material | Glass Fibre |
| Winding Depth | .55″ / 14mm |
| Magnetic Gap Depth | .31″ / 8mm |
| Flux Density | 1.25T |
| MOUNTING INFORMATION | |
| Overall Diameter | 10.2″ / 261mm |
| Bolt Circle Diameter | 9.6″ / 245mm |
| Baffle Cutout Diameter | 8.8″ / 230mm |
| Depth | 4.4″ / 113mm |
| Flange & Gasket Thickness | .5″ / 13mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 6.4 lbs./ 2.9 kg. |
| THIELE-SMALL PARAMETERS | |
| Resonant Frequency (fs) | 56 Hz |
| Impedance (Re) | 5.7 ohms |
| Electrical Factor(Qes) | .29 |
| Mechanical Q (Qms) | 3.4 |
| Total Q (Qts) | .26 |
| Compliance Equiv. Vol. (Vas) | 31 Liters/1.1cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.032m2 |
| Voice Coil Overhang (Xmax) | 6.0mm |
| Reference Efficiency | 1.8% |
| Diaphragm Mass (Mms) | 37g |
| BL Factor | 16.2 T-M |
| Coil Inductance (Le) | .9mH |
