B&C 10MD26
€0.00
- 700 W continuous program power capacity
- 76 mm (3 in) aluminium voice coil
- 80 – 4000 Hz response
- 100 dB sensitivity
- Aprašymas
- Atsiliepimai (0)
Aprašymas
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
10” / 250mm |
|
Impedance |
8 ohms |
|
RMS Power Rating |
350 Watts |
| Program Power | 700 Watts |
|

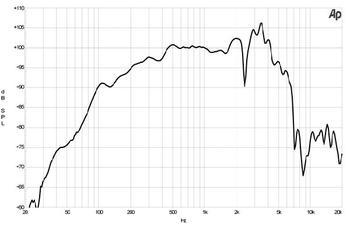

Frequency Response |
80Hz – 4.0kHz |
|
Sensitivity (1W/1m) |
100dB |
|
Voice Coil Diameter |
3″ / 76mm |
| Winding Material | Aluminum |
| Former Material | Glass Fibre |
| Winding Depth | .4375″ / 11mm |
| Magnetic Gap Depth | .3125″ / 8mm |
| Flux Density | 1.45T |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 10.2″ / 261mm |
| Bolt Circle Diameter | 9.6″ / 245mm |
| Baffle Cutout Diameter | 8.8” / 230mm |
| Depth | 4.9″ / 125mm |
| Flange & Gasket Thickness | .67″ / 17mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 16.1 lbs./ 7.3 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
76 Hz |
| Impedance (Re) | 5.8 ohms |
| Electrical Factor(Qes) | .22 |
| Mechanical Q (Qms) | 4.8 |
| Total Q (Qts) | .21 |
| Compliance Equiv. Vol. (Vas) | 20.1 Liters/.71cu. ft. |
| Voice Coil Overhang (Xmax) | 1.5mm |
| Reference Efficiency | 3.9% |
| BL Factor | 19.6 T-M |
| Coil Inductance (Le) | 1.2mH |
